Two piston versions for the 1.0 EcoBoost engine

The 1.0 EcoBoost engine is part of Ford's successful engine line-up. Debuting in 2012, this engine offers a combination of high performance and efficiency. During the development of the engine, innovations and modifications were made to improve the engine's properties and performance.

One notable element of these modifications is the appearance of two different types of pistons. As a result, different piston designs are used in the first and second generation engines. These changes in piston design have resulted in improvements in efficiency, reliability and emission production, which would improve the overall engine quality and performance.

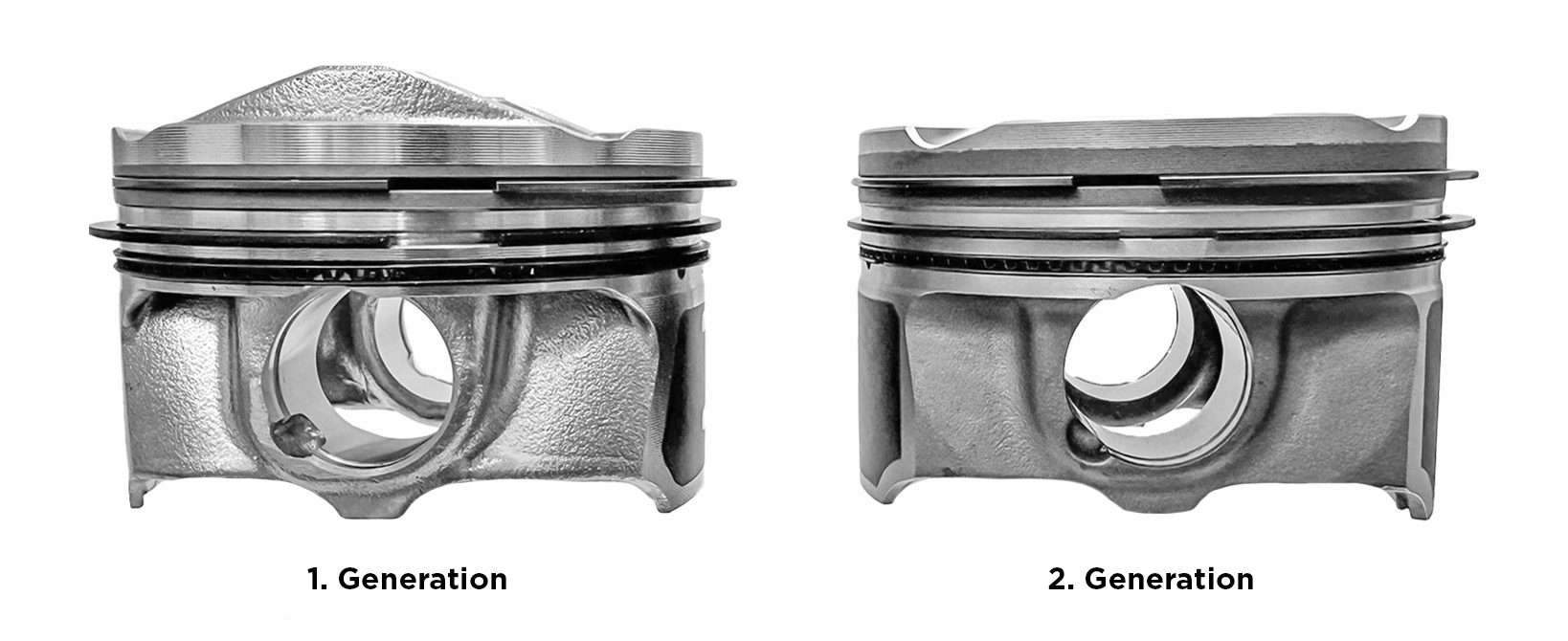

The described difference between the pistons is obvious at a glance. While the first generation piston has a pronounced protrusion at the top, the second generation piston has a flat top surface.

The 1.0 EcoBoost engine is used in many Ford models, including Ford B-Max, C-Max, Fiesta, Grand C-Max, Mondeo, Transit Courier and others. In addition, various versions of this engine are produced, including M1CA, M1CB, M1DA, M1JC, M2GB, P4JA, P4JB, SFDA, SFJA, SFJD and others.

Don't forget to sign in to view your prices.

Selection of items

General information

Code:PM008500
Brand: ET ENGINETEAM
Title:Piston with rings and pin
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :0,90 kg

Criteria

Cylinder Bore [mm]: 71,9 mm
Standard Size [STD]: yes
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Bolt Head Diameter [mm]: 20 mm
Show all Show less
Netto price: $104.29 ($104.29 without VAT 0%)
Your price: -40% $62.57 ($62.57 without VAT 0%)
Warehouse: > 25 pcs

General information

Code:PM015000
Brand: ET ENGINETEAM
Title:Piston with rings and pin
Car:Ford B-Max C-Max ECOSPORT Fiesta Focus Grand C-Max Mondeo Puma Tourneo Courier Transit Courier Transit Custom SFCA M2GA 1,0 EcoBoost 2014+
Weight  :0,90 kg

Criteria

Standard Size [STD]: yes
Cylinder Bore [mm]: 71,9 mm
Compression Height [mm]: 27,4 mm
Recess Depth 1 [mm]: 4,25 mm
Recess Diameter [mm]: 29,5 mm
Bolt Length [mm]: 47 mm
Bolt Head Diameter [mm]: 20 mm
General Information: Piston for 2nd generation engine.
Show all Show less
Netto price: $128.57 ($128.57 without VAT 0%)
Your price: -40% $77.14 ($77.14 without VAT 0%)
Warehouse: 0 pcs

General information

Code:PM008550
Brand: ET ENGINETEAM
Title:Piston with rings and pin
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :0,33 kg

Criteria

Cylinder Bore [mm]: 72,4 mm
Oversize [mm]: 0,5 mm
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Bolt Head Diameter [mm]: 20 mm
Show all Show less
Netto price: $104.29 ($104.29 without VAT 0%)
Your price: -40% $62.57 ($62.57 without VAT 0%)
Warehouse: 4 pcs

General information

Code:PM015050
Brand: ET ENGINETEAM
Title:Piston with rings and pin
Car:Ford B-Max C-Max ECOSPORT Fiesta Focus Grand C-Max Mondeo Puma Tourneo Courier Transit Courier Transit Custom SFCA M2GA 1,0 EcoBoost 2014+
Weight  :0,90 kg

Criteria

Oversize [mm]: 0,5 mm
Cylinder Bore [mm]: 72,4 mm
Compression Height [mm]: 27,4 mm
Recess Depth 1 [mm]: 4,25 mm
Recess Diameter [mm]: 29,5 mm
Bolt Length [mm]: 47 mm
Bolt Head Diameter [mm]: 20 mm
General Information: Piston for 2nd generation engine.
Show all Show less
Netto price: $128.57 ($128.57 without VAT 0%)
Your price: -40% $77.14 ($77.14 without VAT 0%)
Warehouse: 0 pcs

General information

Code:PM008500VR1
Brand: ET ENGINETEAM
Title:Piston kit
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :0,99 kg

Criteria

Quantity: 3
Cylinder Bore [mm]: 71,9 mm
Standard Size [STD]: yes
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Bolt Head Diameter [mm]: 20 mm
Show all Show less
Netto price: $295.24 ($295.24 without VAT 0%)
Your price: -40% $177.14 ($177.14 without VAT 0%)
Warehouse: > 25 pcs

General information

Code:PM008500VR2
Brand: ET ENGINETEAM
Title:Piston kit
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :1,00 kg

Criteria

Standard Size [STD]: yes
Quantity: 3
Cylinder Bore [mm]: 71,9 mm
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Bolt Head Diameter [mm]: 20 mm
Supplementary Article/Supplementary Info: with mounting tool
Show all Show less
Netto price: $302.38 ($302.38 without VAT 0%)
Your price: -40% $181.43 ($181.43 without VAT 0%)
Warehouse: > 25 pcs
Warehouse 2 (+3 days): > 25 pcs

General information

Code:PM008500VR3
Brand: ET ENGINETEAM
Title:Piston Set + conrods
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :1,39 kg

Criteria

Standard Size [STD]: yes
Quantity: 3
Cylinder Bore [mm]: 71,9 mm
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Bolt Head Diameter [mm]: 20 mm
Supplementary Article/Supplementary Info: with mounting tool
Supplementary Article/Info 2: for keystone connecting rod
Show all Show less
Netto price: $666.19 ($666.19 without VAT 0%)
Your price: -40% $399.71 ($399.71 without VAT 0%)
Warehouse: 14 pcs

General information

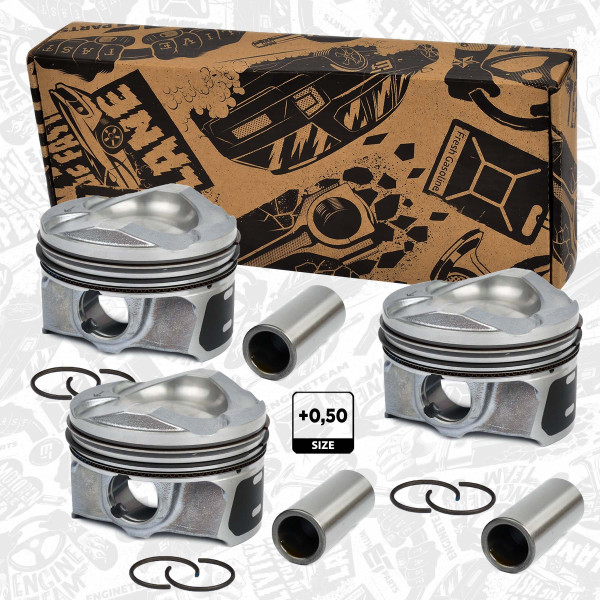

Code:PM008550VR1
Brand: ET ENGINETEAM
Title:Piston kit
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :0,99 kg

Criteria

Quantity: 3
Cylinder Bore [mm]: 72,4 mm
Oversize [mm]: 0,5 mm
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Show all Show less
Netto price: $295.24 ($295.24 without VAT 0%)
Your price: -40% $177.14 ($177.14 without VAT 0%)
Warehouse: 1 pcs

General information

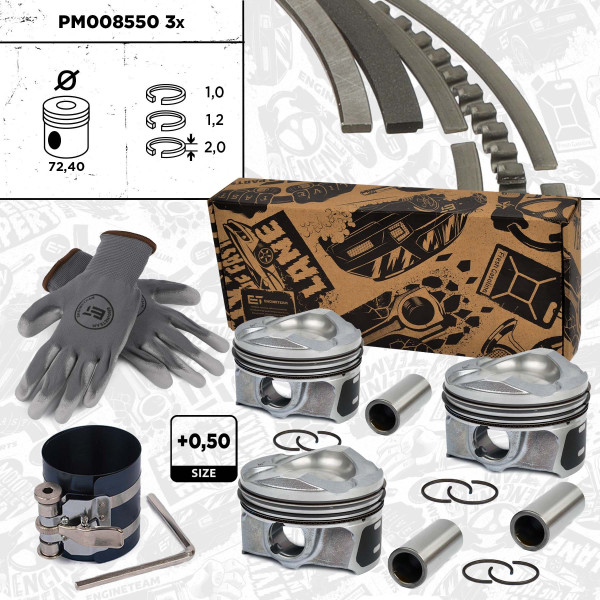

Code:PM008550VR2
Brand: ET ENGINETEAM
Title:Piston kit
Car:Ford B-Max C-Max Fiesta Focus Transit Courier Mondeo M2D2 M2GA SFCB 1,0 EcoBoost 2012+
Weight  :1,00 kg

Criteria

Oversize [mm]: 0,5 mm
Cylinder Bore [mm]: 72,4 mm
Quantity: 3
Compression Height [mm]: 32,9 mm
Recess Depth 1 [mm]: 8,7 mm
Recess Diameter [mm]: 43 mm
Bolt Length [mm]: 46,8 mm
Supplementary Article/Supplementary Info: with mounting tool
Show all Show less
Netto price: $302.38 ($302.38 without VAT 0%)
Your price: -40% $181.43 ($181.43 without VAT 0%)
Warehouse: 1 pcs
