ElringKlinger has been supplying gaskets for Mercedes-Benz engines since 1927. With intensive research and development and the support of 44 production sites worldwide, ELRING created the HDEP - heavy duty engine platform - in 2007.
HDEP is an engine platform designed for truck applications for extreme performance and long service life. The development involved the use of new engine gasket designs, new technologies and materials. The expected high investment to meet the EURO 6 emission standard for Europe and the EPA 7 and EPA 10 regulations for North America were the main reasons for the creation of this universal engine platform currently used worldwide in Mercedes-Benz, Detroid Diesel, MTU and Fuso vehicles.
A new multi-layer cylinder head gasket was developed for OM 470 / OM 471 / OM 472 / OM 473 engines. This presented a huge technical challenge - there was a need to ensure a long service life of up to 1.2 million kilometres while keeping costs reasonable. The result was a cylinder head gasket consisting of three metal layers, each with directly injected elastomeric elements. In addition, two cover layers are used to ensure optimal sealing of the combustion chamber. This unique technology is used on all displacements.
Source service information ELRING.
Gasket types for Mercedes-Benz with OM 470 / OM 471 / OM 472 / OM 473 engines
Gaskets for OM 470 / MTU 6R 1100 C

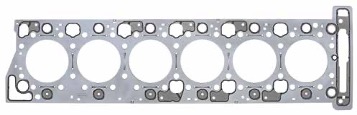

Cylinder head gasket Elring 727.894 / Full gasket set Elring 356.031
- Ø 130 mm
- OE : 470 016 09 20
Gaskets for OM 471 / Detroit Diesel DD13 / MTU 6R 1300 C

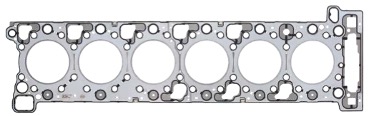

Cylinder head gasket Elring 380.060 / Full gasket set Elring 004.361 (without cylinder head gasket)
- Ø 133 mm
- Thickness 1.20 mm
- OE: 471 016 07 20

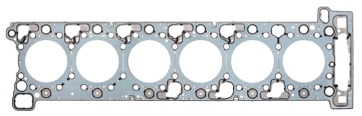

Cylinder head gasket Elring 601.800 / Full gasket set Elring 004.361 (without cylinder head gasket)
- Ø 137 mm
- Thickness 1.20 mm
- OE: 471 016 12 20
Gaskets for OM 472 / Detroit Diesel DD15 and OM 473 / Detroit Diesel DD16 / MTU 6R 1500
Cylinder head gasket Elring 396.472 / Full gasket set Elring 934.240 (without cylinder head gasket)
- Ø 140 mm
- Thickness 1.20 mm
- OE: 472 016 13 20
Cylinder head gasket Elring 574.862 / Full gasket set Elring 934.240 (without cylinder head gasket)
- Ø 140 mm
- Thickness 1.20 mm
- OE: 472 016 14 20

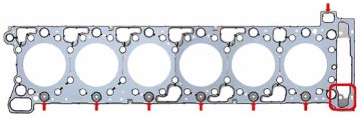

Cylinder head gasket Elring 896.235 (for cylinder liner with fire ring) / Full gasket set Elring 934.240 (without cylinder head gasket)
- Ø 143.6 mm
- Thickness 1.20 mm
- OE: 472 016 18 20
Don't forget to sign in to view your prices.
General information
| Code: | 727.894 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | Deutz-Fahr Agrotron Mercedes Benz Actros MP4/MP5 Antos Arocs Setra Bus MultiClass ComfortClass OM470.903/904/906→908/910/913→915/917/918/921→923/928→930 MTU 6R1100C* 2011+ |
| Weight : | 0,98 kg |
Criteria
| Thickness [mm]: |
1,20
mm
|
| Installed thickness [mm]: |
1,20
mm
|
| Diameter [mm]: |
130
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$150.71
($150.71 without VAT 0%)
Your price:
-25%
$113.03
($113.03 without VAT 0%)
General information
| Code: | 356.031 |
| Brand: | ELRING |
| Title: | Full Gasket Set, engine |
| Car: | Deutz-Fahr Agrotron Fuso MTU Mercedes-Benz Actros MP4/MP5 Antos Arocs Setra Bus MultiClass ComfortClass OM470.903/904/906→908/913//915/917/918/928→930 6R1100C* 2011+ |
| Weight : | 4,38 kg |
Criteria
| Supplementary Article/Info 2: |
with exhaust manifold gasket(s)
|
| Supplementary Article/Supplementary Info: |
with cylinder head gasket
|
| Supplementary Article/Info 2: |
without control housing gasket
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
| Supplementary Article/Supplementary Info: |
with cylinder head cover gasket
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| For OE number: |
470 010 01 79
|
| For OE number: |
470 010 02 30
|
| For OE number: |
470 010 02 79
|
| For OE number: |
470 010 03 30
|
| Installed thickness [mm]: |
1,20
mm
|
Show all
Show less
Netto price:
$983.19
($983.19 without VAT 0%)
Your price:
-25%
$737.39
($737.39 without VAT 0%)
General information
| Code: | 380.060 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | Deutz Agrotron Mercedes-Benz Actros MP4 MP5 Antos Arocs Setra TopClass DD13 OM471.900/901/902/903/905/906/909/910/911/913/914/915/917/919/920 |
| Weight : | 0,98 kg |
Criteria
| Thickness [mm]: |
1,2
mm
|
| Diameter [mm]: |
133
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$251.00
($251.00 without VAT 0%)
Your price:
-25%
$188.25
($188.25 without VAT 0%)
New item 2022/05
General information
| Code: | 601.800 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | Detroit-Diesel Deutz-Fahr Agrotron Freightliner Mercedes-Benz Actros MP3/MP4 Antos Arocs Setra-Bus TopClass ComfortClass DD13 OM471* 6R10* 6R1300* 2011+ |
| Weight : | 1,34 kg |
Criteria
| Thickness [mm]: |
1,3
mm
|
| Diameter [mm]: |
137,4
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$212.19
($212.19 without VAT 0%)
Your price:
-25%
$159.14
($159.14 without VAT 0%)
General information
| Code: | 004.361 |
| Brand: | ELRING |
| Title: | Full Gasket Set, engine |
| Car: | Mercedes-Benz Actros MP4/MP5 Antos Arocs OM471.900/905/906/909 2011+ |
| Weight : | 1,72 kg |
Criteria
| Supplementary Article/Supplementary Info: |
without cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
Netto price:
$990.52
($990.52 without VAT 0%)
Your price:
-25%
$742.89
($742.89 without VAT 0%)
General information
| Code: | 396.472 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | MERCEDES |
| Weight : | 1,32 kg |
Criteria
| Thickness [mm]: |
1,2
mm
|
| Installed thickness [mm]: |
1,2
mm
|
| Diameter [mm]: |
140
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$202.29
($202.29 without VAT 0%)
Your price:
-25%
$151.72
($151.72 without VAT 0%)
General information
| Code: | 574.862 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | Detroit Diesel DD16 Mercedes Benz OM472.903 OM472.904 OM472.907 OM473.901 OM473.902 |
| Weight : | 1,12 kg |
Criteria
| Thickness [mm]: |
1,2
mm
|
| Installed thickness [mm]: |
1,2
mm
|
| Diameter [mm]: |
140
mm
|
| Cylinder Bore [mm]: |
140
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$191.05
($191.05 without VAT 0%)
Your price:
-25%
$143.29
($143.29 without VAT 0%)
General information
| Code: | 896.235 |
| Brand: | ELRING |
| Title: | Gasket, cylinder head |
| Car: | Detroit Diesel Mercedes-Benz Actros MP4/MP5 Antos Arocs Western Star DD15/DD16 OM472.906→910 OM473.900→903/905/907→910/914/915/917/919 2013+ |
| Weight : | 1,15 kg |
Criteria
| Thickness [mm]: |
1,2
mm
|
| Installed thickness [mm]: |
1,2
mm
|
| Diameter [mm]: |
143,6
mm
|
| Cylinder Bore [mm]: |
143,6
mm
|
| Gasket Design: |
Metal Elastomer Gasket
|
Netto price:
$181.95
($181.95 without VAT 0%)
Your price:
-25%
$136.46
($136.46 without VAT 0%)
General information
| Code: | 934.240 |
| Brand: | ELRING |
| Title: | Full Gasket Set, engine |
| Car: | MERCEDES |
| Weight : | 3,06 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
without cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
without cylinder head cover gasket
|
| Supplementary Article/Info 2: |
without control housing gasket
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
Netto price:
$916.52
($916.52 without VAT 0%)
Your price:
-25%
$687.39
($687.39 without VAT 0%)
General information
| Code: | 841.360 |
| Brand: | ELRING |
| Title: | Seal Kit, injector nozzle |
| Car: | MERCEDES |
| Weight : | 0,30 kg |
Criteria
| Number of seals: |
6
|
| Number of sealing rings: |
30
|
| Supplementary Article/Info 2: |
with bolts/screws
|
| Number of bolts/screws: |
6
|
| Thread Size: |
M8x1,25x54
|
Netto price:
$70.71
($70.71 without VAT 0%)
Your price:
-25%
$53.03
($53.03 without VAT 0%)
General information
| Code: | 340.330 |
| Brand: | ELRING |
| Title: | Seal, fuel filter |
| Car: | MERCEDES |
| Weight : | 0,03 kg |
Criteria
| Fitting Position: |
Between heat exchanger and fuel filter
|
| Number of Parts [parts]: |
3
-part
|
Netto price:
$18.10
($18.10 without VAT 0%)
Your price:
-25%
$13.57
($13.57 without VAT 0%)
General information
| Code: | 840.870 |
| Brand: | ELRING |
| Title: | Gasket Set, oil cooler |
| Car: | MERCEDES |
| Weight : | 0,30 kg |
Netto price:
$91.67
($91.67 without VAT 0%)
Your price:
-25%
$68.75
($68.75 without VAT 0%)
New item 2022/09
General information
| Code: | 356.041 |
| Brand: | ELRING |
| Title: | Gasket Set, cylinder head |
| Car: | MERCEDES |
| Weight : | 3,54 kg |
Criteria
| Supplementary Article/Info 2: |
with exhaust manifold gasket(s)
|
| Supplementary Article/Supplementary Info: |
with cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
with cylinder head cover gasket
|
| For OE number: |
470 010 01 79
|
| For OE number: |
470 010 02 30
|
| For OE number: |
470 010 02 79
|
| For OE number: |
470 010 03 30
|
| Installed thickness [mm]: |
1,20
mm
|
Show all
Show less
Netto price:
$537.90
($537.90 without VAT 0%)
Your price:
-25%
$403.42
($403.42 without VAT 0%)
General information
| Code: | 356.050 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | MERCEDES |
| Weight : | 0,99 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
| Supplementary Article/Info 2: |
without control housing gasket
|
Netto price:
$521.43
($521.43 without VAT 0%)
Your price:
-25%
$391.07
($391.07 without VAT 0%)
General information
| Code: | 880.180 |
| Brand: | ELRING |
| Title: | Gasket Set, cylinder head |
| Car: | Detroit Diesel Deutz-Fahr Agrotron Freightliner Century Mercedes-Benz MP4/MP5 Antos Arocs Setra Bus TopClass ComfotrClass DD13* 6R10* OM471.900→902/905/906/909/910 2011+ |
| Weight : | 4,08 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
with cylinder head gasket
|
| For OE number: |
471 010 17 30
|
| For OE number: |
471 010 18 30
|
| For OE number: |
471 010 21 30
|
| For OE number: |
471 010 29 30
|
Netto price:
$773.19
($773.19 without VAT 0%)
Your price:
-25%
$579.89
($579.89 without VAT 0%)
General information
| Code: | 693.170 |
| Brand: | ELRING |
| Title: | Gasket Set, cylinder head |
| Car: | MERCEDES |
| Weight : | 3,50 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| For OE number: |
471 010 13 30
|
| For OE number: |
471 010 14 30
|
| For OE number: |
471 010 15 30
|
| For OE number: |
471 010 20 30
|
| For OE number: |
471 010 26 30
|
| For OE number: |
471 010 27 30
|
| For OE number: |
471 010 30 30
|
| For OE number: |
471 010 31 30
|
| For OE number: |
471 010 33 30
|
| For OE number: |
471 010 37 30
|
| For OE number: |
471 010 39 30
|
| For OE number: |
471 010 41 30
|
Show all
Show less
Netto price:
$799.48
($799.48 without VAT 0%)
Your price:
-25%
$599.61
($599.61 without VAT 0%)
General information
| Code: | 911.610 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | Deutz Agrotron Freightliner Truck Century Mercedes-Benz Actros MP4 MP5 Antos Arocs Setra Bus TopClass DD13 6R10 OM471.940→942/944/946/951 OM471.900→903/905/906/909→911/913→915/917/919/920/922/926→928/932→935/937/938 6R1300 |
| Weight : | 1,46 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
| Contains more articles than the OE kit (art. no.): |
471 010 35 05
|
Netto price:
$332.19
($332.19 without VAT 0%)
Your price:
-25%
$249.14
($249.14 without VAT 0%)
General information
| Code: | 771.340 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | Deutz Agrotron Freightliner Truck Century Mercedes-Benz Actros MP4 MP5 Antos Arocs Setra Bus TopClass DD13 6R10 OM471.940→942/944/946/951 OM471.900→903/905/906/909→911/913→915/917/919/920/922/926→928/932→935/937/938 6R1300 |
| Weight : | 1,45 kg |
Criteria
| Supplementary Article/Info 2: |
without oil sump gasket
|
| For OE number: |
471 010 35 05
|
Netto price:
$121.52
($121.52 without VAT 0%)
Your price:
-25%
$91.14
($91.14 without VAT 0%)
General information
| Code: | 908.330 |
| Brand: | ELRING |
| Title: | Gasket Set, cylinder head |
| Car: | Mercedes-Benz Western Star Freightliner Detroit Diesel DD15 OM472* |
| Weight : | 1,69 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
| Supplementary Article/Supplementary Info: |
without cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
without cylinder head cover gasket
|
Netto price:
$433.76
($433.76 without VAT 0%)
Your price:
-25%
$325.32
($325.32 without VAT 0%)
General information
| Code: | 911.960 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | MERCEDES |
| Weight : | 1,38 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| Supplementary Article/Info 2: |
without control housing gasket
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
Netto price:
$559.57
($559.57 without VAT 0%)
Your price:
-25%
$419.68
($419.68 without VAT 0%)
General information
| Code: | 968.450 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | MERCEDES |
| Weight : | 1,48 kg |
Criteria
| Supplementary Article/Info 2: |
without oil sump gasket
|
Netto price:
$113.52
($113.52 without VAT 0%)
Your price:
-25%
$85.14
($85.14 without VAT 0%)
General information
| Code: | 656.390 |
| Brand: | ELRING |
| Title: | Gasket Set, cylinder head |
| Car: | MERCEDES |
| Weight : | 1,76 kg |
Criteria
| Supplementary Article/Supplementary Info: |
without cylinder head gasket
|
| Supplementary Article/Supplementary Info: |
with valve stem seals
|
Netto price:
$384.10
($384.10 without VAT 0%)
Your price:
-25%
$288.07
($288.07 without VAT 0%)
General information
| Code: | 945.300 |
| Brand: | ELRING |
| Title: | Seal Kit, crankcase |
| Car: | MERCEDES |
| Weight : | 1,14 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with crankshaft seal
|
| Supplementary Article/Info 2: |
without oil sump gasket
|
Netto price:
$570.48
($570.48 without VAT 0%)
Your price:
-25%
$427.86
($427.86 without VAT 0%)
