New crankshaft kits for PUMA 2.2 TDCI / HDI engines including pistons, bearings and connecting rods
2021-05-07
Thanks to ET kits, there is no need to search for the right pistons and connecting rods for your engine. It often happens that customers buy incompatible components for a specific engine because they confuse pistons with different compression heights. Remember that the PUMA EUR4 and EUR5 engines have at least three piston variants that are not interchangeable. Mechanics often confuse this and automatically order the first version of the pistons and connecting rods they come across.
We have previously introduced crankshaft kits with connecting rods and bearings. Now we are expanding them with pistons in standard size (STD) and repair size (+0.50).
These kits are suitable, for example, for Ford Transit / Tourneo, Peugeot Boxer, Citroën Jumper with 4HG, 4HH, 4HJ, CVRA, CVRC, CYFA, DRFA, PGFA, PGFB, P8FA, P8FB, QVFA, QWFA, 4HU, 4HV 2.2 TDCI / HDI engines manufactured since 2000.
You can also find the differences of the pistons and the connecting rods in the article here or here.
An overview of shortblocks and cylinder heads for PUMA engines can be found here.
Contents of new kits:

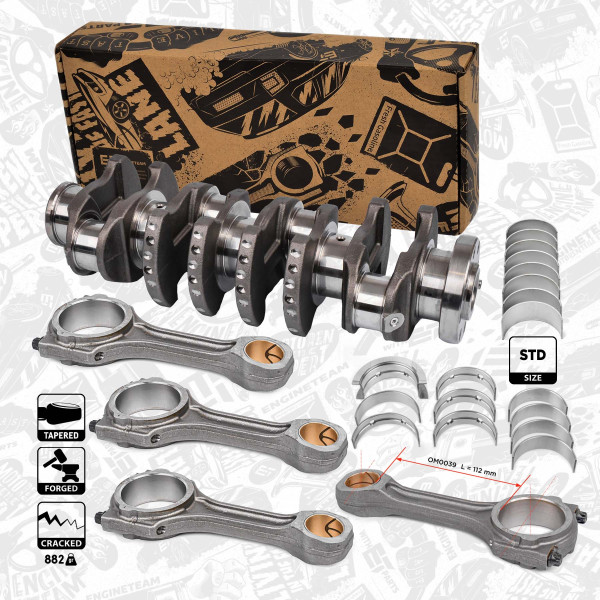

Crankshaft kit HK0207VR1
- Crankshaft HK0207
- Connecting rod OM0039 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 112.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set

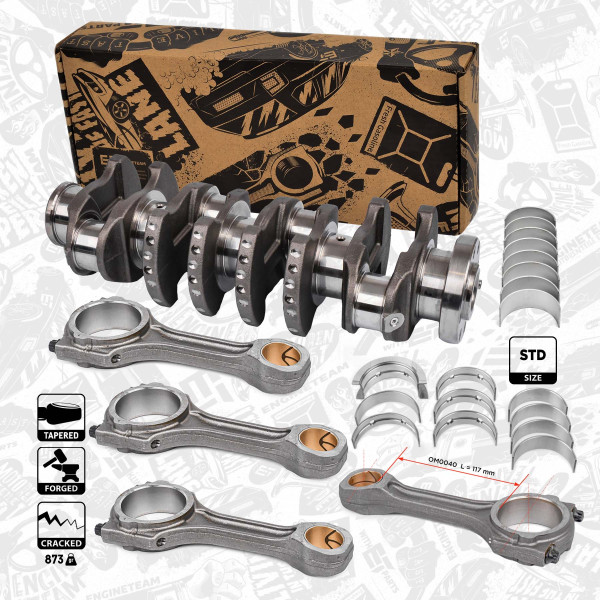

Crankshaft kit HK0207VR2
- Crankshaft HK0207
- Connecting rod set OM0040 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 117.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set
Crankshaft kit HK0207VR3
- Crankshaft HK0207
- Connecting rod OM0039 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 112.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set
- 4x piston PM004700 - standard size STD
Crankshaft kit HK0207VR4
- Crankshaft HK0207
- Connecting rod set OM0040 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 117.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set
- 4x piston PM001200 - standard size STD

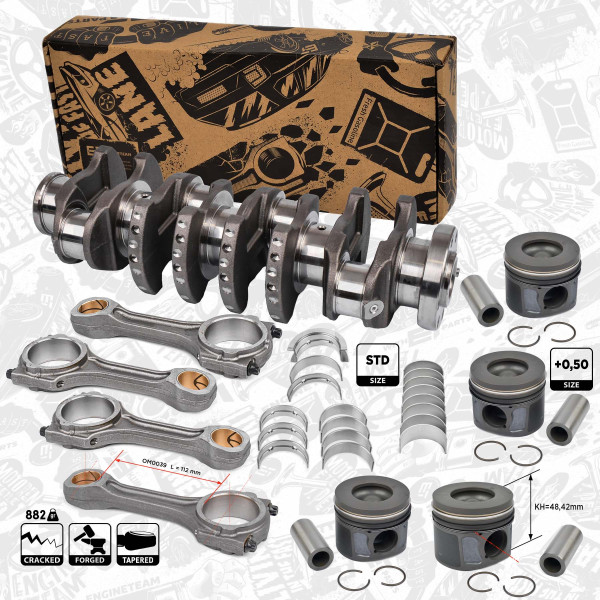

Crankshaft kit HK0207VR5
- Crankshaft HK0207
- Connecting rod OM0039 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 112.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set
- 4x piston PM004750 - repair size +0.50
Crankshaft kit HK0207VR6
- Crankshaft HK0207
- Connecting rod set OM0040 - the distance between the nearest edges of the small eye for the piston pin and the large eye for the crank is 117.0 mm
- Connecting rod bearings LP002800 - set
- Main bearings LH002700 - set
- 4x piston PM001250 - repair size +0.50
Don't forget to sign in to view your prices.
Selection of items
General information
| Code: | HK0207VR1 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA |
Criteria
|
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
Price
Netto price:
$957.14
($957.14 excl. VAT 0%)
Your price:
(-40%)
$574.28
($574.28 excl. VAT 0%)
Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA
General information
| Code: | HK0207VR2 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
Criteria
|
| Full Set |
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
Display all
Price
Netto price:
$957.14
($957.14 excl. VAT 0%)
Your price:
(-40%)
$574.28
($574.28 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+
General information
| Code: | HK0207VR3 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+ |
Criteria
|
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
| Supplementary Article/Info 2: |
with piston
|
| Standard Size [STD] |
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$1,607.62
($1,607.62 excl. VAT 0%)
Your price:
(-40%)
$964.57
($964.57 excl. VAT 0%)
We recommend!
New 2021/02
Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+
General information
| Code: | HK0207VR4 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
Criteria
|
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
| Supplementary Article/Info 2: |
with piston
|
| Standard Size [STD] |
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$1,304.76
($1,304.76 excl. VAT 0%)
Your price:
(-40%)
$782.86
($782.86 excl. VAT 0%)
We recommend!
New 2021/02
Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+
General information
| Code: | HK0207VR5 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+ |
Criteria
|
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
| Supplementary Article/Info 2: |
with piston
|
| Piston protrusion [mm]: |
0,50
mm
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$1,607.62
($1,607.62 excl. VAT 0%)
Your price:
(-40%)
$964.57
($964.57 excl. VAT 0%)
We recommend!
New 2021/02
Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+
General information
| Code: | HK0207VR6 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
Criteria
|
| Supplementary Article/Info 2: |
with flanged main bearing
|
| Machining: |
Forged
|
| Supplementary Article/Info 2: |
with piston
|
| Piston protrusion [mm]: |
0,50
mm
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$1,304.76
($1,304.76 excl. VAT 0%)
Your price:
(-40%)
$782.86
($782.86 excl. VAT 0%)
We recommend!
New 2021/02
Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+
General information
| Code: | HK0207 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV 2004+ |
Criteria
Price
Netto price:
$519.05
($519.05 excl. VAT 0%)
Your price:
(-40%)
$311.43
($311.43 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV 2004+
General information
| Code: | PM001200 |
| Brand: | ET ENGINETEAM |
| Name: | Piston |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV 2004+ |
Criteria
|
| Cylinder Bore [mm]: |
86,00
mm
|
| Standard Size [STD] |
| Compression Height [mm]: |
43,420
mm
|
| Recess Depth 1 [mm]: |
15,850
mm
|
| Recess Diameter [mm]: |
46,900
mm
|
| Length [mm]: |
69,820
mm
|
| Bolt Ø [mm]: |
30
mm
|
| Bolt length [mm]: |
66,85
mm
|
| Supplementary Article/Info 2: |
with piston ring carrier
|
| Supplementary Article/Info 2: |
with cooling duct
|
| Supplementary Article/Info 2: |
for keystone connecting rod
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$105.33
($105.33 excl. VAT 0%)
Your price:
(-40%)
$63.20
($63.20 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV 2004+
General information
| Code: | PM004700 |
| Brand: | ET ENGINETEAM |
| Name: | Piston |
| Vehicle: | Ford Duratorq 2,2TDCi 2011+ |
Criteria
|
| Cylinder Bore [mm]: |
86
mm
|
| Standard Size [STD] |
| Compression Height [mm]: |
48,42
mm
|
| Recess Depth 1 [mm]: |
16,2
mm
|
| Recess Diameter [mm]: |
49
mm
|
| Length [mm]: |
74,85
mm
|
| Bolt Ø [mm]: |
30
mm
|
| Bolt length [mm]: |
66,75
mm
|
| Supplementary Article/Info 2: |
with piston ring carrier
|
| Supplementary Article/Info 2: |
with cooling duct
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$191.90
($191.90 excl. VAT 0%)
Your price:
(-40%)
$115.14
($115.14 excl. VAT 0%)
Ford Duratorq 2,2TDCi 2011+
General information
| Code: | OM0039 |
| Brand: | ET ENGINETEAM |
| Name: | Connecting Rod |
| Vehicle: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA |
Criteria
|
| Hole Spacing [mm]: |
117
mm
|
| Tightening Torque [Nm]: |
60
Nm
|
| Machining: |
cracked
|
| Machining: |
Forged
|
| Connecting Rod Design: |
Trapezoidal Connecting Rod
|
| Pin Diameter [mm]: |
30
mm
|
| Weight [g]: |
873
g
|
Display all
Price
Netto price:
$517.33
($517.33 excl. VAT 0%)
Your price:
(-40%)
$310.40
($310.40 excl. VAT 0%)
Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA
General information
| Code: | OM0040 |
| Brand: | ET ENGINETEAM |
| Name: | Connecting Rod |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
Criteria
|
| Standard Set |
| Hole Spacing [mm]: |
117
mm
|
| Tightening Torque [Nm]: |
60
Nm
|
| Machining: |
Forged
|
| Machining: |
cracked
|
| Connecting Rod Design: |
Trapezoidal Connecting Rod
|
| Pin Diameter [mm]: |
30
mm
|
| Weight [g]: |
873
g
|
Display all
Price
Netto price:
$517.33
($517.33 excl. VAT 0%)
Your price:
(-40%)
$310.40
($310.40 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+
General information
| Code: | LH002700 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft Bearings |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi 4HU/4HV 2000+ |
Criteria
|
| Standard Size [STD] |
| Quantity Unit: |
Kit
|
Price
Netto price:
$53.33
($53.33 excl. VAT 0%)
Your price:
(-40%)
$32.00
($32.00 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,2D/HDi 4HU/4HV 2000+
General information
| Code: | LP002800 |
| Brand: | ET ENGINETEAM |
| Name: | Big End Bearings |
| Vehicle: | Citroen Fiat Ford Peugeot 2,0/2,2D/HDi/TDCi 2000+ |
Criteria
|
| Standard Size [STD] |
| Quantity Unit: |
Kit
|
Price
Netto price:
$37.62
($37.62 excl. VAT 0%)
Your price:
(-40%)
$22.57
($22.57 excl. VAT 0%)
Citroen Fiat Ford Peugeot 2,0/2,2D/HDi/TDCi 2000+
General information
| Code: | PM001250 |
| Brand: | ET ENGINETEAM |
| Name: | Piston |
| Vehicle: | Fiat 4HV 4HU Citroen Peugeot Ford 2,2TDCi 2,2HDi 2006+ |
Criteria
|
| Cylinder Bore [mm]: |
86,5
mm
|
| Oversize [mm]: |
0,5
mm
|
| Compression Height [mm]: |
43,420
mm
|
| Recess Depth 1 [mm]: |
15,850
mm
|
| Recess Diameter [mm]: |
46,900
mm
|
| Length [mm]: |
69,820
mm
|
| Bolt Ø [mm]: |
30
mm
|
| Bolt length [mm]: |
66,85
mm
|
| Supplementary Article/Info 2: |
with piston ring carrier
|
| Supplementary Article/Info 2: |
with cooling duct
|
| Supplementary Article/Info 2: |
for keystone connecting rod
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$105.33
($105.33 excl. VAT 0%)
Your price:
(-40%)
$63.20
($63.20 excl. VAT 0%)
Fiat 4HV 4HU Citroen Peugeot Ford 2,2TDCi 2,2HDi 2006+
General information
| Code: | PM004750 |
| Brand: | ET ENGINETEAM |
| Name: | Piston |
| Vehicle: | Ford Duratorq 2,2TDCi 2011+ |
Criteria
|
| Cylinder Bore [mm]: |
86,5
mm
|
| Compression Height [mm]: |
48,42
mm
|
| Recess Depth 1 [mm]: |
16,2
mm
|
| Recess Diameter [mm]: |
49
mm
|
| Length [mm]: |
74,85
mm
|
| Bolt Ø [mm]: |
30
mm
|
| Bolt length [mm]: |
66,75
mm
|
| Supplementary Article/Info 2: |
with piston ring carrier
|
| Supplementary Article/Info 2: |
with cooling duct
|
| Oversize [mm]: |
0,50
mm
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
Display all
Price
Netto price:
$191.90
($191.90 excl. VAT 0%)
Your price:
(-40%)
$115.14
($115.14 excl. VAT 0%)
Ford Duratorq 2,2TDCi 2011+
deutsch
česky
