Spare parts MAZDA PYY3
General information
| Code: | 41987600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | MAZDA |
Criteria
| Production Number: | 089243 |
| Cylinder Bore [mm]: | 89 mm |
| Piston Clearance [mm]: | 0,03 mm |
| Compression Height [mm]: | 25,7 mm |
| Length [mm]: | 58 mm |
| Recess Depth 1 [mm]: | 9,3 mm |
| Valve Pocket Depth 1 [mm]: | 1 mm |
| Valve Pocket Depth 2 [mm]: | 1,1 mm |
| Recess Diameter [mm]: | 24,4 mm |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 21 mm |
| Bolt Length [mm]: | 49 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| For OE number: | PYY4-11-SA0 |
Show all
Show less
General information
| Code: | 41989600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | MAZDA |
Criteria
| Production Number: | 089244 |
| Cylinder Bore [mm]: | 89 mm |
| Piston Clearance [mm]: | 0,03 mm |
| Compression Height [mm]: | 25,7 mm |
| Length [mm]: | 56 mm |
| Recess Depth 1 [mm]: | 7,6 mm |
| Valve Pocket Depth 1 [mm]: | 1 mm |
| Recess Diameter [mm]: | 24,2 mm |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 21 mm |
| Bolt Length [mm]: | 49 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| For OE number: | PYY5-11-SA0 |
Show all
Show less
General information
| Code: | FE100094 |
| Brand: | FEBI BILSTEIN |

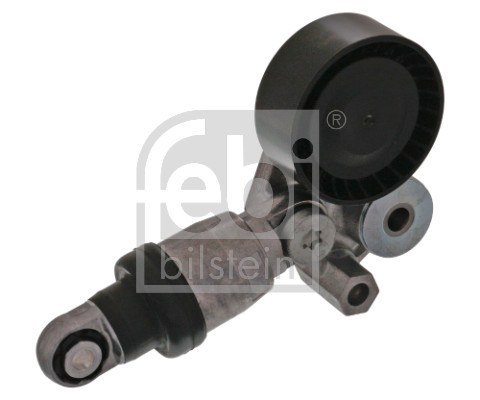

| Title: | Belt Tensioner, V-ribbed belt |
| Car: | MAZDA |
Criteria
| Width of castor bearing surface [mm]: | 26 mm |
| Housing material: | Aluminium |
| Track rollers material: | Plastic |
| Outer Diameter [mm]: | 65 mm |
| Operating Mode: | Automatic |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
General information
| Code: | FE175830 |
| Brand: | FEBI BILSTEIN |

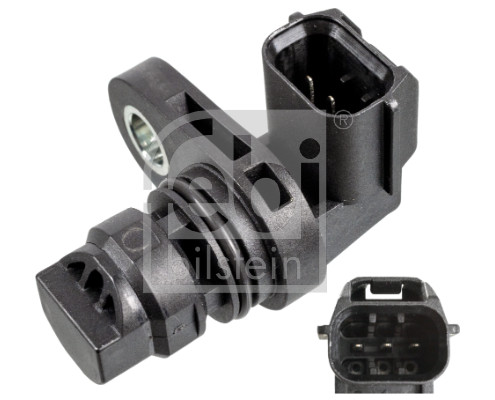

| Title: | Sensor, camshaft position |
| Car: | MAZDA |
Criteria
| Number of connectors: | 3 |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
General information
| Code: | FE177117 |
| Brand: | FEBI BILSTEIN |

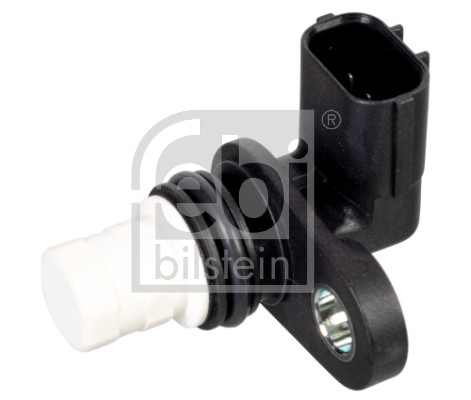

| Title: | Sensor, crankshaft pulse |
| Car: | MAZDA |
Criteria
| Number of connectors: | 3 |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
General information
| Code: | FE180282 |
| Brand: | FEBI BILSTEIN |
| Title: | Screw Plug, oil sump |
| Car: | MAZDA |
Criteria
| Length [mm]: | 18 mm |
| External Thread Size: | M14 x 1,5 |
| Thread Length [mm]: | 10 mm |
| Spanner Size: | 19 |
| Bolt Head-/Nut Design: | External Hexagon |
| Material: | Steel |
| Surface: | Zinc-coated |
| Screw length below head [mm]: | 10 mm |
| Supplementary Article/Supplementary Info 2: | without seal ring |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
General information
| Code: | FE183074 |
| Brand: | FEBI BILSTEIN |

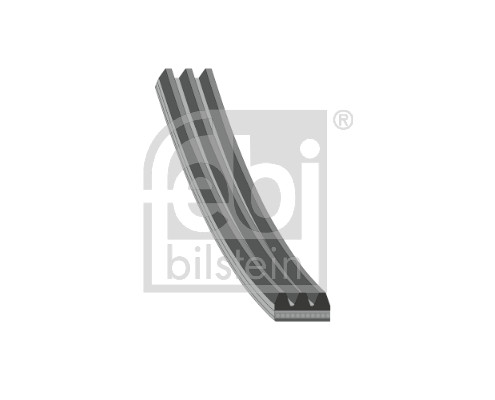

| Title: | V-ribbed Belt |
Criteria
| Length [mm]: | 817 mm |
| Material: | EPDM (ethylene propylene diene Monomer (M-class) rubber) |
| Number of ribs: | 3 |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
General information
| Code: | FE186090 |
| Brand: | FEBI BILSTEIN |

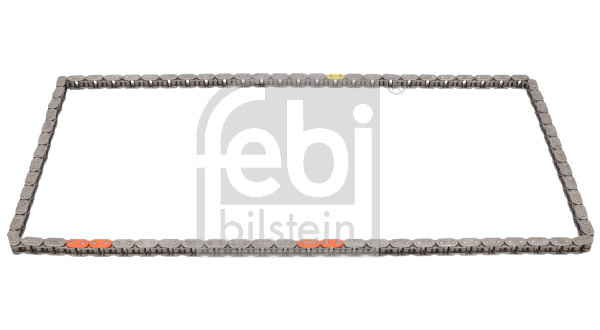

| Title: | Timing Chain |
Criteria
| Chain Type: | Simplex |
| Timing Chain Size: | G53RING-1 |
| Number of chain links: | 150 |
| Chain Type: | Closed chain |
| Chain pitch [mm]: | 8 mm |
| Observe service information: | yes |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
General information
| Code: | FE186633 |
| Brand: | FEBI BILSTEIN |
| Title: | Ignition Coil |
| Car: | MAZDA |
Criteria
| Number of connectors: | 4 |
| Observe service information: | yes |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
General information
| Code: | FE188389 |
| Brand: | FEBI BILSTEIN |
| Title: | Water Pump, engine cooling |
| Car: | MAZDA |
Criteria
| Housing material: | Aluminium |
| Water pump impeller material: | Plastic |
| Seal Material: | Rubber |
| Number of blades/vanes: | 7 |
| Supplementary Article/Supplementary Info 2: | with seal ring |
| Observe service information: | yes |
| General Information: | These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions. |
Show all
Show less
