Spare parts VM RA 630 DOHC
General information
| Code: | 08-449900-00 |
| Brand: | GOETZE ENGINE |
| Title: | Piston Ring Set |
| Tag: | Goetze Diamond Coated® LKZ-Ring® |
| Car: | Chrysler 300C Jeep Commander Gladiator Grand Cherokee Lancia Thema 3,0D/3,0CRD EXF* EXJ* EXL* EXN* M664* RA630* VR630* 2005+ |
Criteria
| Cylinder Bore [mm]: | 83 mm |
| Component Number: | 2.0mm 001 GDC P KV4 |
| Component Number: | 2.0mm 050 P F12/F14 |
| Component Number: | 2.0mm 231LKZ CKP G13 |
| Standard Size [STD]: | yes |
Show all
Show less

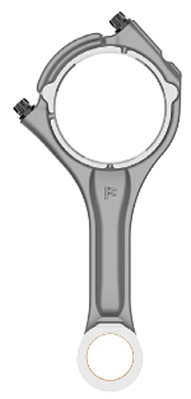

General information
| Code: | CO008200 |
| Brand: | IPSA |
| Title: | Connecting Rod |
| Car: | Chrysler 300C Jeep Commander Grand Cherokee Lancia Thema Maserati Ghibli Quattroporte 3,0CRD EXF/EXL/EXN/A630HP/M15746/RA630 2005+ |
Criteria
| Tightening Torque [Nm]: | 70 Nm |
| Hole Spacing [mm]: | 111,7 mm |
| Processing: | Forged |
| Processing: | cracked |
| Weight [g]: | 720 g |
Show all
Show less
General information
| Code: | COB01400 |
| Brand: | IPSA |
| Title: | Connecting Rod Bolt |
| Car: | CHRYSLER |
Criteria
| Thread Size: | M9x1 |
| Thread Length [mm]: | 50 mm |
| Bolt Head-/Nut Design: | Torx |
Show all
Show less
General information
| Code: | 87-449900-00 |
| Brand: | NÜRAL |
| Title: | Piston with rings and pin |
| Car: | Chrysler 300C Jeep Commander Gladiator Grand Cherokee Lancia Thema 3,0D/3,0CRD EXF* EXL* M664* RA630* 2005+ |
Criteria
| Supplementary Article/Supplementary Info 2: | with cooling duct |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Supplementary Article/Supplementary Info 2: | for keystone connecting rod |
| Recess Depth 1 [mm]: | 15,8 mm |
| Compression Height [mm]: | 46,63 mm |
| Height [mm]: | 72,6 mm |
| Cylinder Bore [mm]: | 83 mm |
| Bolt Head Diameter [mm]: | 30 mm |
| Bolt Length [mm]: | 65 mm |
| Valve Pocket Depth 1 [mm]: | 1,17 mm |
| Valve Pocket Depth 2 [mm]: | 1,22 mm |
| Component Number: | 08-449900-00 |
| Machined: | with cut-out for oil jet |
| Standard Size [STD]: | yes |
| Filled: | yes |
Show all
Show less
