Spare parts JOHN DEERE Series 8 8285R, 8295R
General information
| Code: | 1986A00955 |
| Brand: | BOSCH |
| Title: | Alternator |
Criteria
| Voltage [V]: | 14 V |
| Alternator Charging Current [A]: | 200 A |
| Fastening Type: | Single pivoted lever |
| Alternator Type: | excl. vacuum pump |
| Distance from belt pulley to alternator [mm]: | 86,3 mm |
| Rotation Direction: | Clockwise rotation |
| Pulleys: | with multi-belt pulley |
| Number of grooves: | 8 |
| Belt Pulley Ø [mm]: | 62,5 mm |
| Clamp: | B+(M8), D+(M5) |
| Length [mm]: | 198 mm |
| Recommended additional repairs: | V-Belt/V-ribbed Belt |
Show all
Show less
General information
| Code: | CR2560000P |
| Brand: | MAHLE |
| Title: | Radiator, engine cooling |
| Tag: | BEHR *** PREMIUM LINE *** |
| Car: | JOHN DEERE |
Criteria
| Radiator type: | Brazed cooling fins |
| Core Length [mm]: | 890 mm |
| Core Width [mm]: | 708 mm |
| Core Depth [mm]: | 105 mm |
| Water Tank Material (radiator): | Plastic |
| Cooling Fin Material: | Aluminium |
| Diameter 1 [mm]: | 57 mm |
| Diameter 2 [mm]: | 64 mm |
| Supplementary Article/Supplementary Info 2: | with frame |
| Packaging width [cm]: | 102,00 cm |
| Packaging length [cm]: | 121,0 cm |
| Packaging height [cm]: | 27,00 cm |
| Net Weight [g]: | 38960 g |
| General Information: | PREMIUM LINE - OE Quality for customers expecting the optimum |
| General Information: | The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself. |
Show all
Show less
Netto price:
USD $3,308.76
(USD $3,308.76 without VAT 0%)
Your price:
-30%
USD $2,316.13
(USD $2,316.13 without VAT 0%)
| Warehouse: | 0 pcs | |
|
|
Supplier: | Check |
General information
| Code: | MS975 |
| Brand: | MAHLE |
| Title: | Starter |
Criteria
| Voltage [V]: | 24 V |
| Rated Power [kW]: | 4,8 kW |
| Number of Teeth: | 10 |
| Flange Diameter [mm]: | 89 mm |
| Mounting Angle [degrees]: | 40 ° |
| Number of mounting bores: | 3 |
| Mounting points diameter [mm]: | 127 mm |
| Bore Diameter 1 [mm]: | 11,6 mm |
| Rotation Direction: | Clockwise rotation |
| For flywheel depth [mm]: | 51 mm |
| Tooth Pitch [mm]: | 15,65 mm |
| Clamp: | 31 |
| Transmission Type: | with reduction gear |
| Packaging height [cm]: | 14,50 cm |
| Packaging width [cm]: | 21,50 cm |
| Packaging length [cm]: | 38,2 cm |
| Net Weight [g]: | 8056 g |
Show all
Show less
Netto price:
USD $349.24
(USD $349.24 without VAT 0%)
Your price:
-30%
USD $244.47
(USD $244.47 without VAT 0%)
| Warehouse: | 0 pcs | |
|
|
Supplier: | Check |
General information
| Code: | 069110750102 |
| Brand: | MAGNETI MARELLI |
| Title: | Starter Battery |
Criteria
| Voltage [V]: | 12 V |
| Battery: | HEAVY DUTY [increased cycle and vibration proof] |
| Battery Capacity [Ah]: | 110 Ah |
| Cold-test Current, EN [A]: | 750 A |
| DIN/ISO: | D02 |
| Length [mm]: | 349 mm |
| Width [mm]: | 175 mm |
| Height [mm]: | 235 mm |
| Battery: | with handles |
| Battery: | with fill gauge |
Show all
Show less
General information

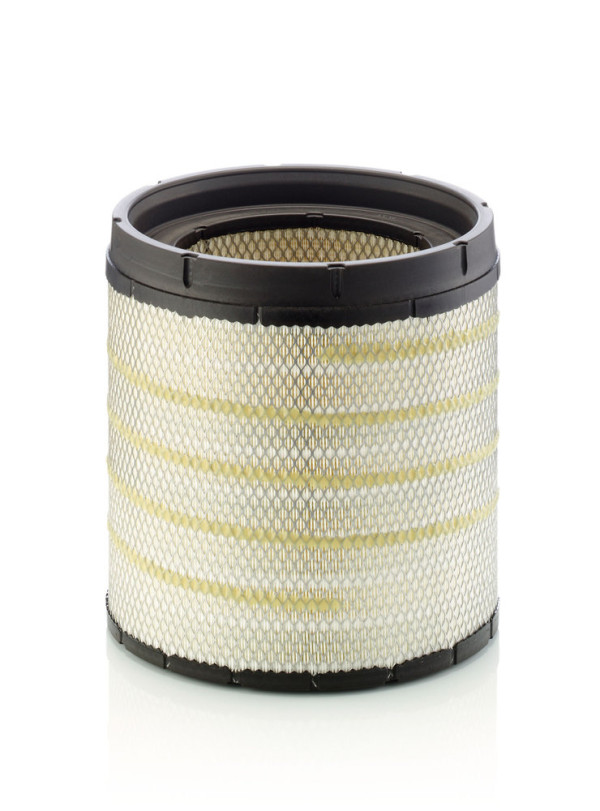

| Code: | C 31 021 |
| Brand: | MANN-FILTER |
| Title: | Air Filter |
| Car: | JOHN DEERE |
Criteria
| Filter type: | Filter Insert |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Height [mm]: | 322 mm |
| Inner Diameter [mm]: | 265 mm |
| Outer Diameter [mm]: | 306 mm |
| Inner Diameter 1 [mm]: | 308 mm |
| General Information: | High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval |
Show all
Show less
General information

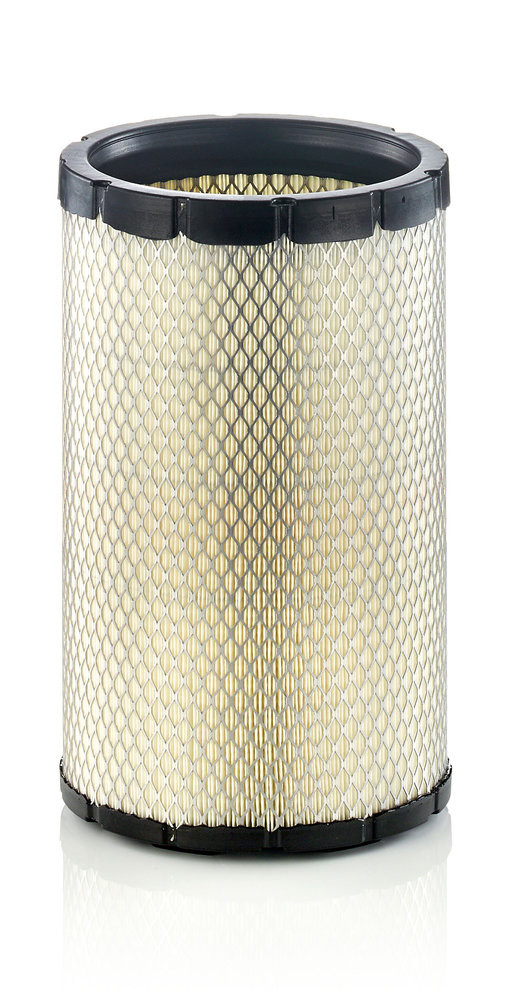

| Code: | CF 19 021 |
| Brand: | MANN-FILTER |
| Title: | Secondary Air Filter |
| Car: | JOHN DEERE |
Criteria
| Filter type: | Filter Insert |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Height [mm]: | 298 mm |
| Inner Diameter [mm]: | 147 mm |
| Outer Diameter [mm]: | 182 mm |
| Inner Diameter 1 [mm]: | 181 mm |
| General Information: | High-quality MANN-FILTER air filter secondary elements offer a comprehensive protection against wear / Engine is protected even if the main filter component is replaced or damaged. While the main element is being replaced, extreme or dusty operating conditions can sometimes occur - the secondary element continues to provide optimum protection for a clean air |
Show all
Show less
General information

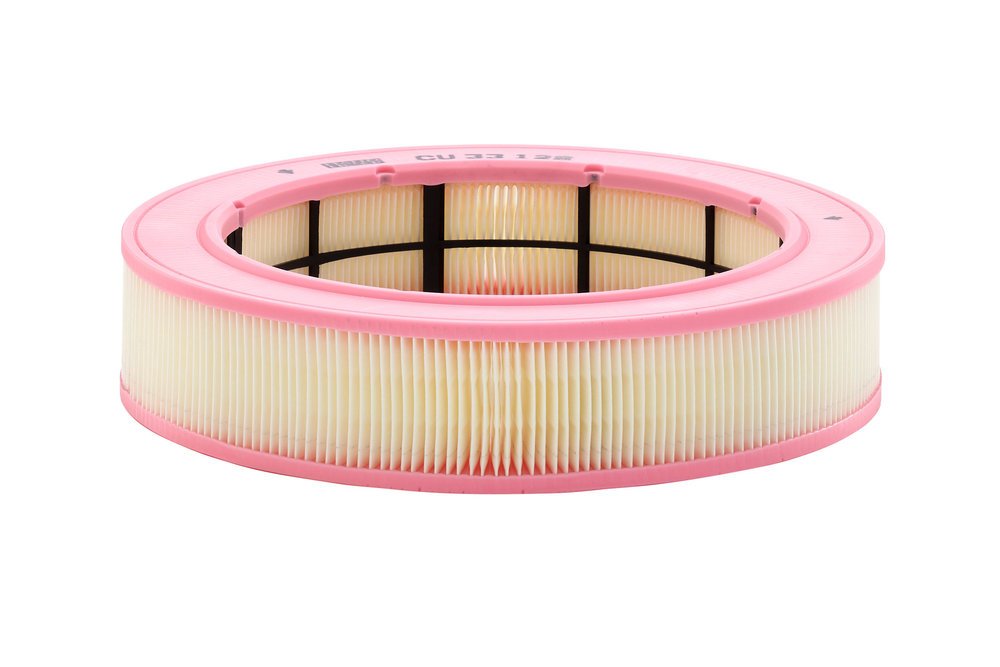

| Code: | CU 33 128 |
| Brand: | MANN-FILTER |
| Title: | Filter, cabin air |
| Car: | JOHN DEERE |
Criteria
| Filter type: | Particulate Filter |
| Version with active carbon (art. no.): | CUK 33 128 |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Height [mm]: | 73 mm |
| Inner Diameter [mm]: | 242 mm |
| Outer Diameter [mm]: | 330 mm |
| Outer Diameter 1 [mm]: | 330 mm |
| Inner Diameter 1 [mm]: | 242 mm |
| General Information: | High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity |
Show all
Show less
General information

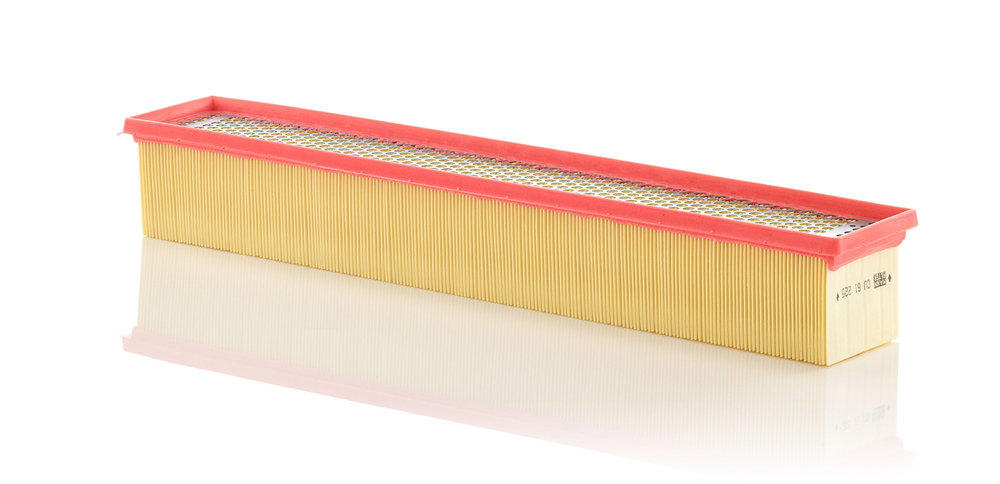

| Code: | CU 61 225 |
| Brand: | MANN-FILTER |
| Title: | Filter, cabin air |
Criteria
| Filter type: | Particulate Filter |
| Version with active carbon (art. no.): | CUK 61 225 |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Length [mm]: | 610 mm |
| Width [mm]: | 103 mm |
| Height [mm]: | 85 mm |
| General Information: | High-quality MANN-FILTER cabin filters offer almost 100% protection against particles such as pollen, diesel soot and tyre abrasion - for a feel-good climate in the vehicle interior and protection of the air conditioning system. Exact fit and perfect tightness ensure constant filtration performance during the entire service interval / Optimum vehicle interior ventilation due to the high air flow capacity |
Show all
Show less
General information
| Code: | H 42 |
| Brand: | MANN-FILTER |
| Title: | Fuel Filter |
| Car: | MERCEDES |
Criteria
| Filter type: | Filter Insert |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Height [mm]: | 51 mm |
| Inner Diameter [mm]: | 10 mm |
| Outer Diameter [mm]: | 28 mm |
| General Information: | MANN-FILTER hydraulic filter elements offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid |
Show all
Show less
General information

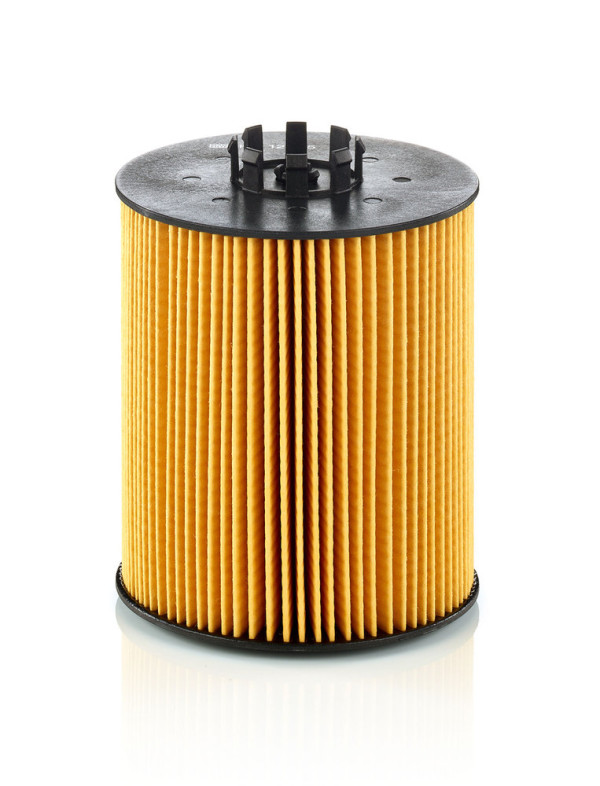

| Code: | HU 12 015 X |
| Brand: | MANN-FILTER |
| Title: | Oil Filter |
| Car: | JOHN DEERE |
Criteria
| Filter type: | Filter Insert |
| EU General Product Safety Regulation (GPSR): | IEC 60417-6183 mechanical expertise required |
| Supplementary Article/Supplementary Info: | with gasket/seal |
| Height [mm]: | 149 mm |
| Inner Diameter [mm]: | 46 mm |
| Outer Diameter [mm]: | 121 mm |
| Inner Diameter 1 [mm]: | 58 mm |
| General Information: | MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval |
Show all
Show less
