českyPartial PUMA engine (shortblock) 2.2 HDI
We have good news for you - we restocked the very popular shortblocks SB0002. After more than a year of downtime, we managed to get several dozen pieces directly from the manufacturer FORD. Delivery time for more pieces is unknown, so it is possible that the current stock will be the last one for a while. These engines - also known as PUMA - can be found, for example, in Ford Transit, Citroen Jumper, Peugeot Boxer and Fiat Ducato with 2.2 liter capacity - EUR4.
OE Number: 0130ET, 1596577, 9C1Q-6011-AA
Shortblock is a complete engine block with pistons, crankshaft, bearings and conrods.
Selection of items
General information
| Code: | SB0002 |
| Brand: | ET ENGINETEAM |
| Name: | Partial Engine |
| Vehicle: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA EUR4 |
| Weight: | 80,00 kg |
Criteria
| For article number: | 9C1Q-6011-AA |
| Emission Standard: | Euro 4 (D4) |
Price
Netto price:
$2,333.33
($2,333.33 excl. VAT 0%)
Your price: (-30%)
$1,633.33
($1,633.33 excl. VAT 0%)
| Stock: | > 25 pcs | |
| External stock: | > 23 pcs |
General information
| Code: | AL0001 |
| Brand: | ET ENGINETEAM |
| Name: | Alternator |
| Vehicle: | Citroën Jumper Fiat Ducato Ford Transit Peugeot Boxer 2,2D 2,2HDi 2,2TDCi 2,2HDi 4HU 4HV P8FA P8FB PGFA PGFB QVFA QWFA SRFA SRFB SRFC SRFD SRFE UHFA UHFB UHFC P22DTE 2006+ |
| Weight: | 7,10 kg |
Criteria
| Alternator Charge Current [A]: | 150 A |
| Alternator type: | excl. vacuum pump |
| Voltage [V]: | 14 V |
Price
Netto price:
$400.00
($400.00 excl. VAT 0%)
Your price: (-40%)
$240.00
($240.00 excl. VAT 0%)
| Stock: | 1 pcs | |
| External stock: | > 23 pcs |
General information
| Code: | HK0207 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV 2004+ |
| Weight: | 17,00 kg |
Criteria
| Machining: | Forged |
General information
| Code: | HL0111 |
| Brand: | ET ENGINETEAM |
| Name: | Cylinder Head |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV PUMA EUR4 2004+ |
| Weight: | 17,50 kg |
Criteria
| Supplementary Article/Info 2: | with valves |
| Emission Standard: | Euro 4 (D4) |
Price
Netto price:
$1,138.10
($1,138.10 excl. VAT 0%)
Your price: (-30%)
$796.67
($796.67 excl. VAT 0%)
| Stock: | 5 pcs | |
| External stock: | > 23 pcs |
General information
| Code: | HV0348 |
| Brand: | ET ENGINETEAM |
| Name: | Camshaft |
| Vehicle: | Fiat Ducato, Citroen Jumper, Peugeot Boxer, Ford Transit 4HV 4HU 2006+ |
| Weight: | 2,70 kg |
Criteria
| Fitting Position: | Exhaust Side |
| Material: | Steel |
| General Information: | Assembled camshaft |
Price
Netto price:
$213.81
($213.81 excl. VAT 0%)
Your price: (-40%)
$128.29
($128.29 excl. VAT 0%)
| Stock: | 17 pcs |
General information
| Code: | LH002700 |
| Brand: | ET ENGINETEAM |
| Name: | Crankshaft Bearings |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi 4HU/4HV 2000+ |
| Weight: | 0,45 kg |
Criteria
| Standard Size [STD] | |
| Quantity Unit: | Kit |
Price
Netto price:
$53.33
($53.33 excl. VAT 0%)
Your price: (-40%)
$32.00
($32.00 excl. VAT 0%)
| Stock: | > 25 pcs |
General information
| Code: | LP002800 |
| Brand: | ET ENGINETEAM |
| Name: | Big End Bearings |
| Vehicle: | Citroen Fiat Ford Peugeot 2,0/2,2D/HDi/TDCi 2000+ |
| Weight: | 0,22 kg |
Criteria
| Standard Size [STD] | |
| Quantity: | set |
Price
Netto price:
$37.62
($37.62 excl. VAT 0%)
Your price: (-40%)
$22.57
($22.57 excl. VAT 0%)
| Stock: | > 25 pcs |
General information
| Code: | OM0040 |
| Brand: | ET ENGINETEAM |
| Name: | Connecting Rod |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
| Weight: | 3,60 kg |
Criteria
| Standard Set | |
| Hole Spacing [mm]: | 117 mm |
| Tightening Torque [Nm]: | 60 Nm |
| Machining: | Forged |
| Machining: | cracked |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| Pin Diameter [mm]: | 30 mm |
| Weight [g]: | 873 g |
Price
Netto price:
$517.33
($517.33 excl. VAT 0%)
Your price: (-40%)
$310.40
($310.40 excl. VAT 0%)
| Stock: | > 25 pcs |
General information
| Code: | PM001200 |
| Brand: | ET ENGINETEAM |
| Name: | Piston |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV 2004+ |
| Weight: | 0,90 kg |
Criteria
| Cylinder Bore [mm]: | 86,00 mm |
| Standard Size [STD] | |
| Compression Height [mm]: | 43,420 mm |
| Recess Depth 1 [mm]: | 15,850 mm |
| Recess Diameter [mm]: | 46,900 mm |
| Bolt Ø [mm]: | 30 mm |
| Bolt length [mm]: | 66,85 mm |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Supplementary Article/Info 2: | for keystone connecting rod |
| Supplementary Article/Supplementary Info: | with piston rings |
Price
Netto price:
$105.33
($105.33 excl. VAT 0%)
Your price: (-40%)
$63.20
($63.20 excl. VAT 0%)
| Stock: | > 25 pcs |
General information

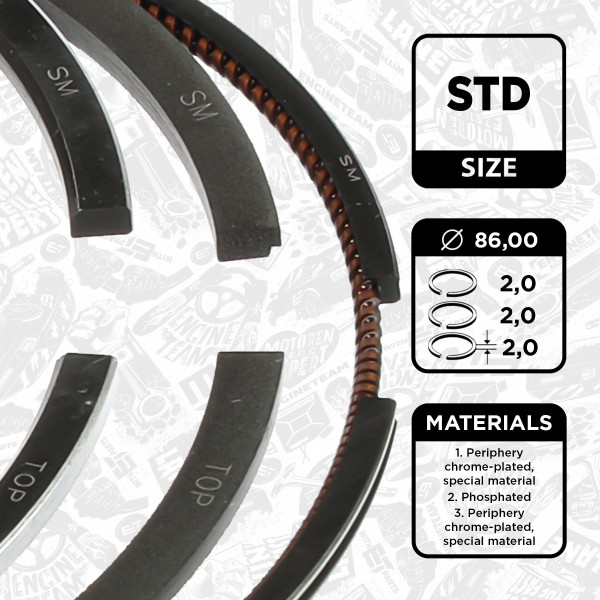

| Code: | R1006900 |
| Brand: | ET ENGINETEAM |
| Name: | Piston Ring Kit |
| Vehicle: | Citroen Fiat Ford Peugeot Jaguar 2,2D/Hdi/TDCi 2004+ |
| Weight: | 0,05 kg |
Criteria
| Cylinder Bore [mm]: | 86 mm |
| Standard Size [STD] | |
Price
Netto price:
$28.52
($28.52 excl. VAT 0%)
Your price: (-40%)
$17.11
($17.11 excl. VAT 0%)
| Stock: | > 25 pcs |
General information

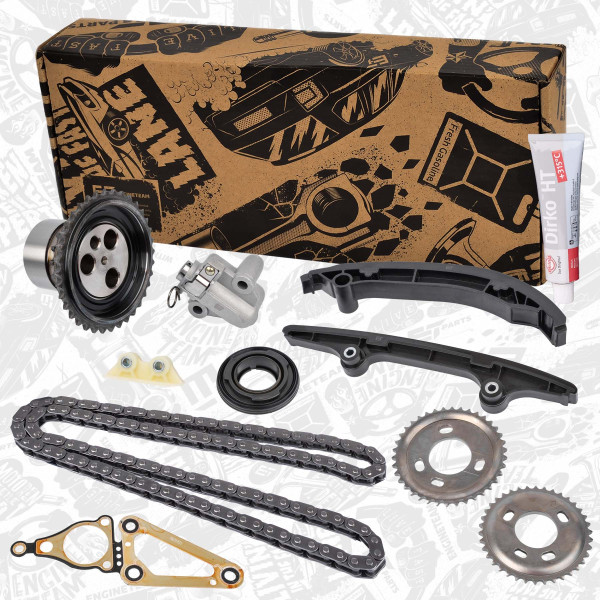

| Code: | RS0078 |
| Brand: | ET ENGINETEAM |
| Name: | Timing Chain Kit |
| Vehicle: | Citroen Fiat Ford Peugeot PUMA 4HV 4HU 2,2HDi/D/TDCi 2006+ |
| Weight: | 6,00 kg |
Criteria
| Scope of Supply: | includes components ET Engineteam + Elring |
Price
Netto price:
$588.19
($588.19 excl. VAT 0%)
Your price: (-40%)
$352.91
($352.91 excl. VAT 0%)
| Stock: | > 25 pcs |
General information
| Code: | SU0005 |
| Brand: | ET ENGINETEAM |
| Name: | Oil sump |
| Vehicle: | Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV 2004+ |
| Weight: | 1,92 kg |
Price
Netto price:
$100.00
($100.00 excl. VAT 0%)
Your price: (-40%)
$60.00
($60.00 excl. VAT 0%)
| Stock: | > 25 pcs | |
| External stock: | > 23 pcs |
