Control valve of camshaft adjustment

2018-09-25

We are presenting a brand new product series in ET Engineteam line: Control valve for camshaft adjustment.

Řídící ventil přestavování vačkového hřídele CV006

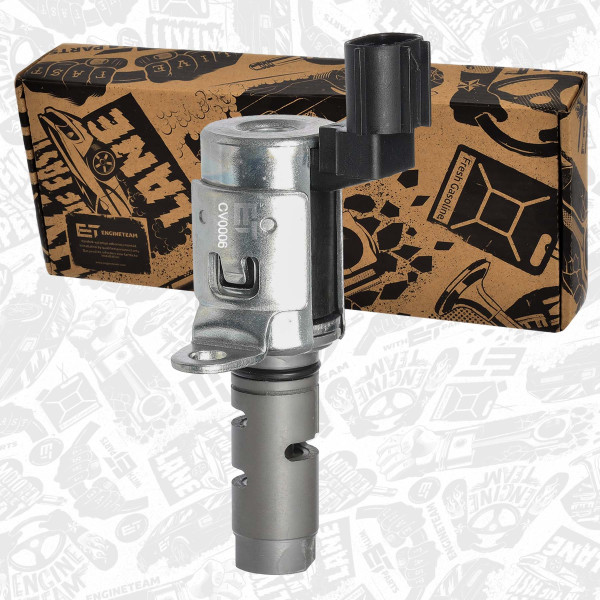

Pic.: Control valve for camshaft adjustment CV0006

Control valve of camshaft adjustment functions:

During the command of the engine control unit for camshaft adjustment the electromagnetic field will change and it will start affecting the control valve, which will open the way for the oil to get to one of the camshaft adjuster chambers. The result of this operation is change of the adjustment of the camshaft. Position of the camshaft will change (mostly by 30° or 60° - depending on type of the engine or car...), which will affect the opening and closing time and duration of valve itself



  • Benefits: Higher power while higher operation, less fuel consumption while lower speed
  • Notifications and malfunctions: If the malfunction will occur during the adjustment of the camshaft on some of the components, OBD diagnostics can warn about the error in time.

All of these valves and other related components can be found in K MOTORSHOP stock

Selection of items

General information

Code:CV0001
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Toyota Avensis,Corolla,Rav 4 1,4/1,6/1,8 VVT-i/16V 2000+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Show all Show less
Netto price: $81.57 ($81.57 without VAT 0%)
Your price: (-40%) $48.94 ($48.94 without VAT 0%)
Stock: 24 pcs

General information

Code:CV0002
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Toyota Prius,Yaris,Verso 1,3/1,5 hybrid 2000+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Show all Show less
Netto price: $95.14 ($95.14 without VAT 0%)
Your price: (-40%) $57.08 ($57.08 without VAT 0%)
Stock: 14 pcs

General information

Code:CV0003
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Subaru Forester Legacy Outback 2,5/3,0 AWD EJ25 2003+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Show all Show less
Netto price: $95.86 ($95.86 without VAT 0%)
Your price: (-40%) $57.52 ($57.52 without VAT 0%)
Stock: > 25 pcs

General information

Code:CV0004
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Hyundai Carens Sorento Sportage 2,0/2,4 CVVT AWD G4KE 2006+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Fitting Position: Intake Side
Show all Show less
Netto price: $108.76 ($108.76 without VAT 0%)
Your price: (-40%) $65.26 ($65.26 without VAT 0%)
Stock: 13 pcs

General information

Code:CV0005
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Hyundai Carens Sorento Sportage 2,0/2,4 CVVT AWD G4KE 2006+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Fitting Position: Exhaust Side
Show all Show less
Netto price: $108.76 ($108.76 without VAT 0%)
Your price: (-40%) $65.26 ($65.26 without VAT 0%)
Stock: 11 pcs

General information

Code:CV0006
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Ford C-MAX Focus Galaxy Kuga 1,5/1,6 TDCI EcoBoobs M9DB 2012+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Number of pins: 2 -pin connector
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Show all Show less
Netto price: $37.62 ($37.62 without VAT 0%)
Your price: (-40%) $22.57 ($22.57 without VAT 0%)
Stock: > 25 pcs

General information

Code:CV0007
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:FIAT CROMA OPEL ASTRA INSIGNIA MOKKA CHEVROLET CRUZE 1,4/1,6/1,8 B 16 XER 2008+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Voltage [V]: 12 V
Supplementary Article/Info 2: with seal ring
Valve type: Control Valve
Show all Show less
Netto price: $92.48 ($92.48 without VAT 0%)
Your price: (-40%) $55.49 ($55.49 without VAT 0%)
Stock: 8 pcs

General information

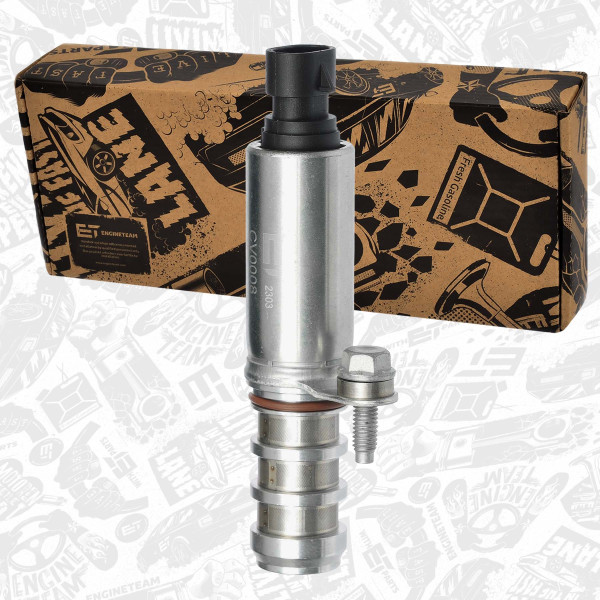

Code:CV0008
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:OPEL ASTRA INSIGNIA CHEVROLET CAPTIVA 2,0/2,4 4WD/TURBO A 20 NHT 2010+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with screw
Supplementary Article/Info 2: with seal ring
Fitting Position: Exhaust Side
Connector Shape: oval
Number of pins: 2 -pin connector
Show all Show less
Netto price: $97.62 ($97.62 without VAT 0%)
Your price: (-40%) $58.57 ($58.57 without VAT 0%)
Stock: 2 pcs

General information

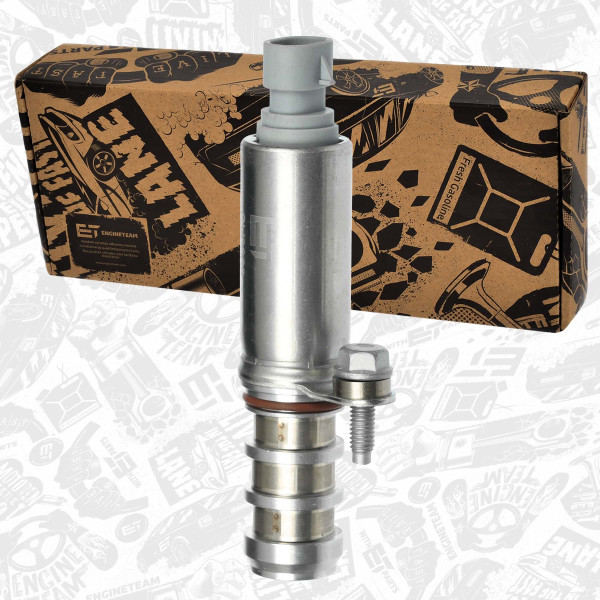

Code:CV0009
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:OPEL ASTRA INSIGNIA CHEVROLET CAPTIVA 2,0/2,4 4WD/TURBO A 20 NHT 2010+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with screw
Supplementary Article/Info 2: with seal ring
Number of pins: 2 -pin connector
Connector Shape: oval
Fitting Position: Intake Side
Show all Show less
Netto price: $97.62 ($97.62 without VAT 0%)
Your price: (-40%) $58.57 ($58.57 without VAT 0%)
Stock: > 25 pcs

General information

Code:CV0010
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:SKODA OCTAVIA FABIA RAPID SEAT ALTEA IBIZA AUDI A1 A3 1,4/1,6 TFSI / FSI / TSI CAXA 2004+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Number of pins: 2 -pin connector
Connector Shape: oval
Show all Show less
Netto price: $82.52 ($82.52 without VAT 0%)
Your price: (-40%) $49.51 ($49.51 without VAT 0%)
Stock: > 25 pcs

General information

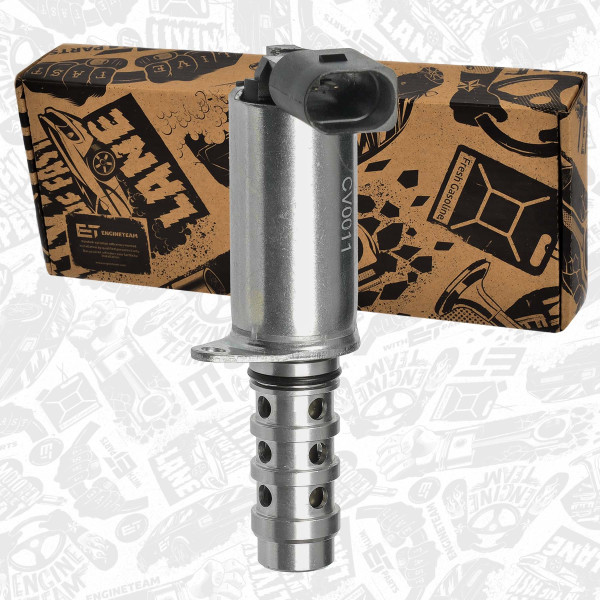

Code:CV0011
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:SEAT LEON EXEO SKODA OCTAVIA RS VW GOLF V 2,0 TFSI / RS BWA 2005+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Number of pins: 2 -pin connector
Connector Shape: oval
Show all Show less
Netto price: $88.38 ($88.38 without VAT 0%)
Your price: (-40%) $53.03 ($53.03 without VAT 0%)
Stock: > 25 pcs

General information

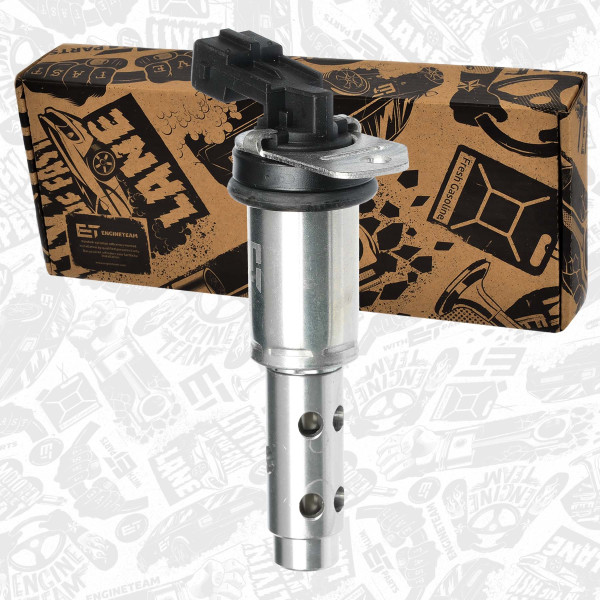

Code:CV0012
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:BMW 1 3 5 X3 X5 Z4 E60 E61 N51 N52 N54 2007+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Voltage [V]: 12 V
Number of pins: 2 -pin connector
Show all Show less
Netto price: $89.81 ($89.81 without VAT 0%)
Your price: (-40%) $53.89 ($53.89 without VAT 0%)
Stock: > 25 pcs

General information

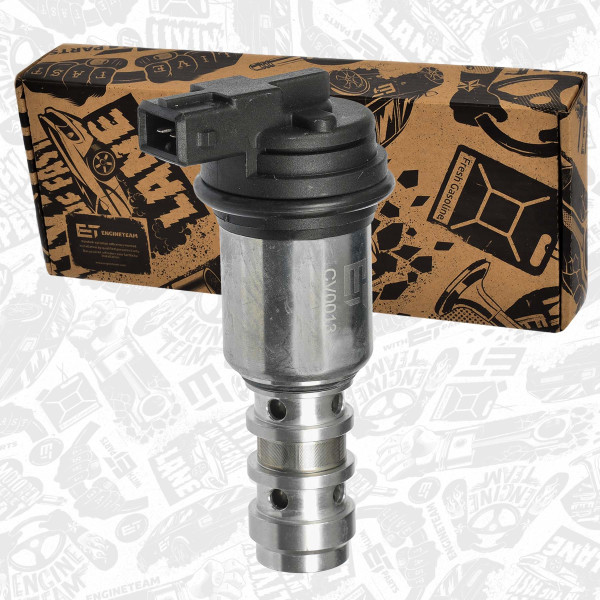

Code:CV0013
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:BMW 1 3 5 6 7 X1 X3 X5 N40 N42 N46 N62 2005+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Voltage [V]: 12 V
Number of pins: 2 -pin connector
Connector Shape: right-angled
Show all Show less
Netto price: $81.62 ($81.62 without VAT 0%)
Your price: (-40%) $48.97 ($48.97 without VAT 0%)
Stock: 20 pcs

General information

Code:CV0014
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Mini Cooper R55 R56 R57 R58 R59 R60 2006+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Connector Shape: right-angled
Number of pins: 2 -pin connector
Show all Show less
Netto price: $86.05 ($86.05 without VAT 0%)
Your price: (-40%) $51.63 ($51.63 without VAT 0%)
Stock: 1 pcs

General information

Code:CV0015
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:AUDI A4 A6 Q7 S6 VW Beetle Jetta AUK CBTA 2006+
Weight:0,23 kg

Criteria

Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with seal ring
Connector Shape: oval
Number of pins: 2 -pin connector
Show all Show less
Netto price: $78.19 ($78.19 without VAT 0%)
Your price: (-40%) $46.91 ($46.91 without VAT 0%)
Stock: 3 pcs

General information

Code:CV0016
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:CITROEN PEUGEOT C3 C4 Picasso C5 207 307 308 4HX KFW 2006+
Weight:0,23 kg

Criteria

Operating Mode: Electric
Voltage [V]: 12 V
Number of pins: 2 -pin connector
Transmission Type: Automatic Transmission
Show all Show less
Netto price: $85.00 ($85.00 without VAT 0%)
Your price: (-40%) $51.00 ($51.00 without VAT 0%)
Stock: 13 pcs

General information

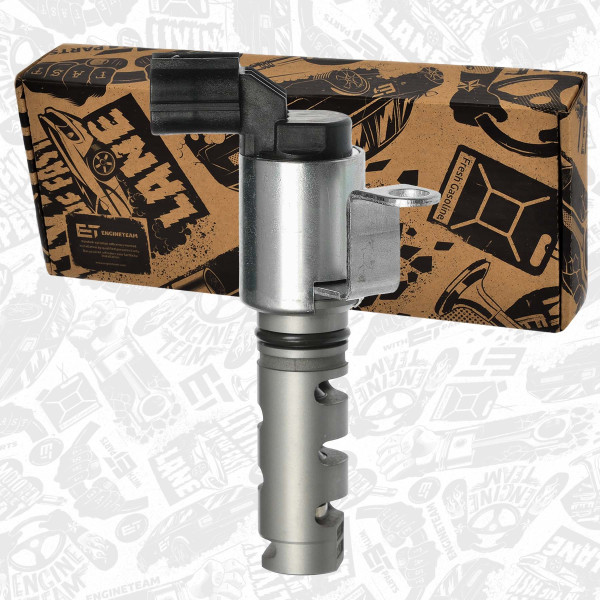

Code:CV0017
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Toyota Auris Corolla Yaris 1NR-FE 1,33 VVT-i 2010+
Weight:0,23 kg

Criteria

Fitting Position: Intake Side
Number of pins: 2 -pin connector
Connector Shape: oval
Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with shaft oil seal
Show all Show less
Netto price: $113.52 ($113.52 without VAT 0%)
Your price: (-40%) $68.11 ($68.11 without VAT 0%)
Stock: 3 pcs

General information

Code:CV0018
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Toyota Auris Corolla Yaris 1NR-FE 1,33 VVT-i 2010+
Weight:0,23 kg

Criteria

Fitting Position: Exhaust Side
Number of pins: 2 -pin connector
Connector Shape: oval
Operating Mode: Electric-hydraulic
Supplementary Article/Info 2: with shaft oil seal
Show all Show less
Netto price: $113.52 ($113.52 without VAT 0%)
Your price: (-40%) $68.11 ($68.11 without VAT 0%)
Stock: 2 pcs

General information

Code:CV0019
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Alfa Romeo Fiat Lancia Mito Punto Delta 1,2 1,4 TBI 939 B1.000 2009+
Weight:0,23 kg

Criteria

Number of pins: 2 -pin connector
Operating Mode: Electronic
Netto price: $71.43 ($71.43 without VAT 0%)
Your price: (-40%) $42.86 ($42.86 without VAT 0%)
Stock: 16 pcs

General information

Code:CV0020
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Land Rover Discovery Freelander Evoque 2,0 204PT 2011+
Weight:0,23 kg

Criteria

Number of pins: 2 -pin connector
Operating Mode: Electric-hydraulic
Connector Shape: oval
Fitting Position: Intake Side
Show all Show less
Netto price: $112.38 ($112.38 without VAT 0%)
Your price: (-40%) $67.43 ($67.43 without VAT 0%)
Stock: 10 pcs

General information

Code:CV0021
Brand: ET ENGINETEAM
Title:Control Valve, camshaft adjustment
Car:Land Rover Discovery Freelander Evoque 2,0 204PT 2011+
Weight:0,23 kg

Criteria

Number of pins: 2 -pin connector
Operating Mode: Electric-hydraulic
Connector Shape: oval
Fitting Position: Exhaust Side
Show all Show less
Netto price: $112.38 ($112.38 without VAT 0%)
Your price: (-40%) $67.43 ($67.43 without VAT 0%)
Stock: 6 pcs

General information

Code:CV0022
Brand: ET ENGINETEAM
Title:Central Magnet, camshaft adjustment
Car:MERCEDES-BENZ C-CLASS E-CLASS S-CLASS SLK SPRINTER VIANO VITO M 272.921 2005+
Weight:0,40 kg

Criteria

Valve type: Control Valve
Operating Mode: Electric
Voltage [V]: 12 V
Show all Show less
Netto price: $61.62 ($61.62 without VAT 0%)
Your price: (-40%) $36.97 ($36.97 without VAT 0%)
Stock: 2 pcs

General information

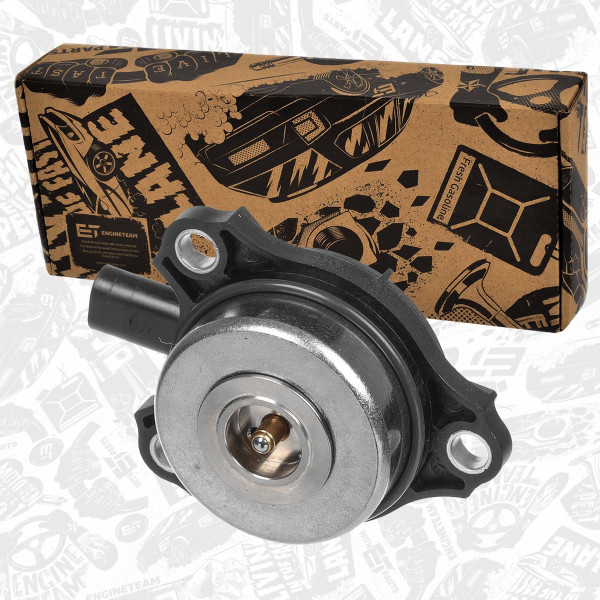

Code:CV0023
Brand: ET ENGINETEAM
Title:Central Magnet, camshaft adjustment
Car:MERCEDES-BENZ C-CLASS E-CLASS SLK C 180 E200 E250 M 271.820 2007+
Weight:0,40 kg
Netto price: $61.62 ($61.62 without VAT 0%)
Your price: (-40%) $36.97 ($36.97 without VAT 0%)
Stock: 2 pcs
