Brand: ET ENGINETEAM |
Code: PM006900ET |
Title: Piston kit
Piston kit - PM006900ET ET ENGINETEAM - 06H107065DL, 06H107065CP, 41197600
Car: Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+
| Weight : | 2,10 kg |
| Component Number: | 4x PM006900 |
| Cylinder Bore [mm]: | 82,51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
| Standard Size [STD]: | yes |
| Scope of Supply: |
includes components ET Engineteam + Elring + Kolbenschmidt includes components ET Engineteam + Elring + Kolbenschmidt [Show less] |
We recommend!
Netto price
$569.05
($569.05
without VAT 0%)
Your price
-40%
$341.43
($341.43
without VAT 0%)
| Warehouse: | 13 pcs | |
| Warehouse 2 (+3 days): | > 25 pcs |
EAN: 8592779021789
Unfortunately, there is no additional description available for this product.
Articles
-
New improved oil-ring for 1,8 / 2,0 TSI pistons
PM0061xx a PM0064xx pistons are now replaced by PM0069xx a PM0070xx version with improved oil ring
Scope of delivery
-

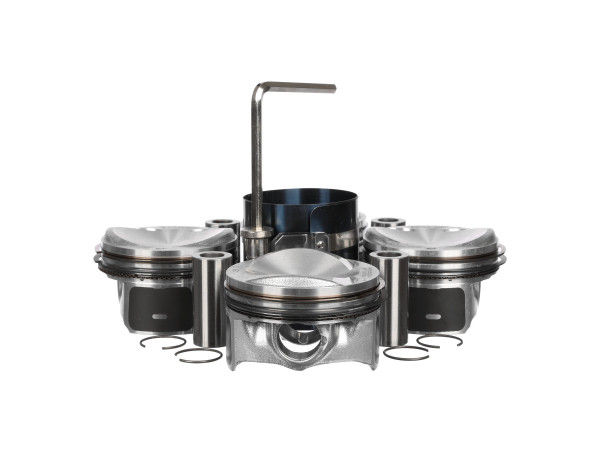

4x Piston with rings and pin ET ENGINETEAM Reference Numbers: 06H107065DL, 06H 107 065 DL, 06H 107 065 BS, 06H 107 065BS, 06H107065BS, 06H 107 065 BF, 06H 107 065BF, 06H107065BF, 06H 107 065 DF, 06H 107 065DF, 06H107065DF, 06H 107 065 CP, 06H 107 065CP, 06H107065CP, 41197600, PM006900 ...
-
1x Gasket, oil sump ELRING Reference Numbers: 99000-31071, D 176 404 A2, 99000-31071-000, D 176 404 M2, 99000-34220, 99000-34220-000, 70-31414-10, HR354, HT200C, LOCTITE SI 5990, 030.793 ...
-
1x Work gloves, brown stripe ET ENGINETEAM Reference Numbers: ME0009
-
1x Piston Ring Compressor ET ENGINETEAM Reference Numbers: 120000416353, 50009816, HP0009
Used in
- AUDI
- SEAT
-
SKODA
-
SKODA CDAA
118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
-
SKODA CDAB
112 kW / 152 HP 1798 ccm 4 cylinders 16 valves Petrol
-
SKODA CDAA
- VW
-
VW (FAW)
-
VW (FAW) CDAA
118 kW / 160 HP 1798 ccm 4 cylinders 16 valves Petrol
-
VW (FAW) CDAA
Reference Numbers
Parts list
General information
| Code: | PM006900 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+ |
| Weight : | 0,90 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt Length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
Show all
Show less
Netto price:
$157.14
($157.14 without VAT 0%)
Your price:
-40%
$94.28
($94.28 without VAT 0%)
| Warehouse: | > 25 pcs |
General information
| Code: | 030.793 |
| Brand: | ELRING |
| Title: | Gasket, oil sump |
| Car: | ŠKODA-VW |
| Weight : | 0,12 kg |
Criteria
| Chemical Properties: | Permanently elastic |
| Chemical Properties: | not solvent-bearing |
| Chemical Properties: | UV resistant |
| Packing Type: | Tube |
| Capacity [ml]: | 70 ml |
| Material: | Silicone |
| Colour: | beige |
| Observe mounting information: | yes |
| Temperature range from [°C]: | -60 °C |
| Temperature range to [°C]: | 315 °C |
| Available as universal article as well, see article no.: | 030.793 Dirko |
Show all
Show less
Netto price:
$5.90
($5.90 without VAT 0%)
Your price:
-25%
$4.42
($4.42 without VAT 0%)
| Warehouse: | > 25 pcs |
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
| Weight : | 0,04 kg |
Criteria
| Material: | Polyester |
| Colour: | brown |
Your price:
$1.19
($1.19 without VAT 0%)
| Warehouse: | > 25 pcs | |
| Warehouse 2 (+3 days): | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter up to [mm]: | 125 mm |
Netto price:
$10.95
($10.95 without VAT 0%)
Your price:
-40%
$6.57
($6.57 without VAT 0%)
| Warehouse: | 12 pcs | |
| Warehouse 2 (+3 days): | > 25 pcs |
Alternatives
General information
| Code: | PM006900 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+ |
| Weight : | 0,90 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt Length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
Show all
Show less
Netto price:
$157.14
($157.14 without VAT 0%)
Your price:
-40%
$94.28
($94.28 without VAT 0%)
| Warehouse: | > 25 pcs |
General information
| Code: | PM006900KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | 41197600S |
| Weight : | 2,10 kg |
Criteria
| Component Number: | 4x 41197600 |
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt Length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
| Standard Size [STD]: | yes |
| Scope of Supply: | Includes components from Kolbenschmidt + Elring |
Show all
Show less
Netto price:
$787.38
($787.38 without VAT 0%)
Your price:
-40%
$472.43
($472.43 without VAT 0%)
| Warehouse: | 2 pcs |
General information
| Code: | 41197600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | ŠKODA-VW |
| Weight : | 0,49 kg |
Criteria
| Production Number: | 082277 |
| Cylinder Bore [mm]: | 82,51 mm |
| Piston Clearance [mm]: | 0,075 mm |
| Compression Height [mm]: | 29,8 mm |
| Length [mm]: | 55,98 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Component Number: | 66002 |
| Component Number: | 66003 |
| Component Number: | 66318 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 23 mm |
| Bolt Length [mm]: | 51 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
Show all
Show less
Netto price:
$139.00
($139.00 without VAT 0%)
Your price:
-40%
$83.40
($83.40 without VAT 0%)
| Warehouse: | 8 pcs | |
| Supplier: | > 25 pcs |
