Pistons ET Engineteam and Kolbenschmidt for TSI / TSFI engines

2017-11-01

We have prepared a list of the most wanted pistons from ET Engineteam and Kolbenschmidt brands.

Pistons for TSI / TSFI engines of Škoda, VW, Audi and Seat cars.

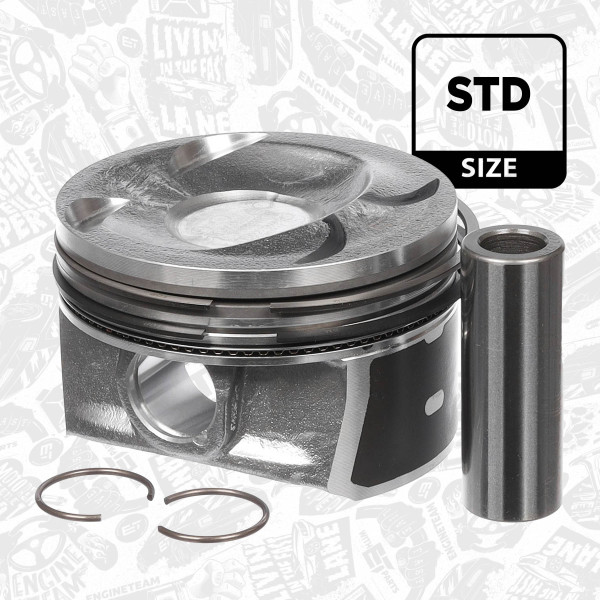

PM004800 complete piston ET Engineteam for 1,4 TSI / TSFI engines:

  • Bore: 76,51 mm.
  • Piston rings: 1,2 mm / 1,2 mm / 2,0 mm.
  • Bolt: length 52 mm, diameter 19 mm.
  • For engines: 1,4 TSI / TSFI of types CAXA, CMSA, CMSB, CAXC, CNVA
  • OE numbers: 03C 107 065 AP, 03C107065AP.
  • Oversize: PM004825 (+0,25 mm).
  • Alternatives: Complete piston Kolbenschmidt 40477600. Also available in oversize: 40477610 (+0,25 mm) and 40477620 (+0,5 mm).

PM004900 complete piston ET Engineteam for 1,4 TSI 16V engines:

  • Bore: 76,51 mm.
  • Piston rings: 1,2 mm / 1,5 mm / 2,0 mm.
  • Bolt: length 54 mm diameter 19 mm.
  • For engines: 1,4 TSI / FSI of types CAVE, CNUB, CNWB, CTHA, CTHE, BMY, BLG and others.
  • OE numbers: 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK.
  • Oversize: PM004950 (+ 0,5 mm).
  • Alternatives: Complete piston Kolbenschmidt 40846600. Also available in oversize (+0,5 mm) 40846620.

PM006000 complete piston ET Engineteam for 1,8 TSI engines:

  • Bore: 82,51 mm
  • Piston rings: 1,2 mm / 1,5 mm / 2,0 mm
  • Bolt: 53 mm x 21 mm.
  • For engines: CEAA, CDAA, CABA, CABD, BZB, BYT, BYJ and others.
  • OE numbers: 06H107065BK, 06H107065T, 06H107099AE, 06J107065AG.
  • Oversize: PM006025 (+0,25 mm) a PM006050 (+0,50 mm).
  • Alternatives: Complete piston Kolbenschmidt 40251600. Also available in oversize 40251610 (+0,25 mm).

PM006100 complete piston ET Engineteam for 1,8 TSI engines:

  • Bore: 82,51 mm
  • Piston rings: 1,2 mm / 1,2 mm / 2,0 mm
  • Bolt: 51 mm x 23 mm.
  • For engines: CDAA, CDAB, CDHA, CDHB.
  • OE numbers: 06H107065BF, 06H107065BS, 06H107065CP, 06H107065DF, 06H107065DL.
  • Oversize: PM006150 (+0,50 mm).
  • Alternatives: Complete piston Kolbenschmidt 40761600 also available in oversize 40761620 (+0,50 mm) and complete piston Kolbenschmidt 41197600 (STD) also available in oversize 41197620 (+0,50 mm).



Practical information for possible swapping of pistons PM0060 / PM0061 for CDAA engines: in the past, pistons with pin diameter 21 mm were installed to the cars. Later on, there has been a manufacture adjustment made. Since then, the pistons are made with stronger pins with 23 mm diameter. If you will order piston from OE, they will supply a piston with 23 mm pin alongside with a note, that if the original piston had 21 mm pin, you will also have to change the connecting rod. This step is very expensive, and that is why the mechanics prefer to use version of piston with the 21 mm pin (if the original piston is with 21 mm pin as well).

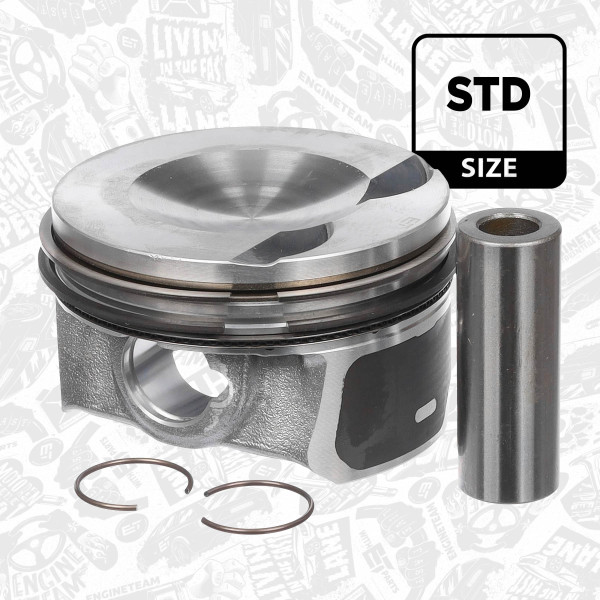

PM006300 piston ET Engineteam – complete, for 2,0 TSI / TSFI engines:

  • Bore: 82,51 mm
  • Piston rings: 1,2 mm / 1,5 mm / 2,0 mm.
  • Bolt: 56 mm, bolt diameter 21 mm.
  • For engines: CADA, CBFA, CCTA, CCZA, CCZC, CGMA and others.
  • OE numbers: 06H107065AB, 06H107065AM, 06H107065BE, 06H107099AM, 06J107065AH.

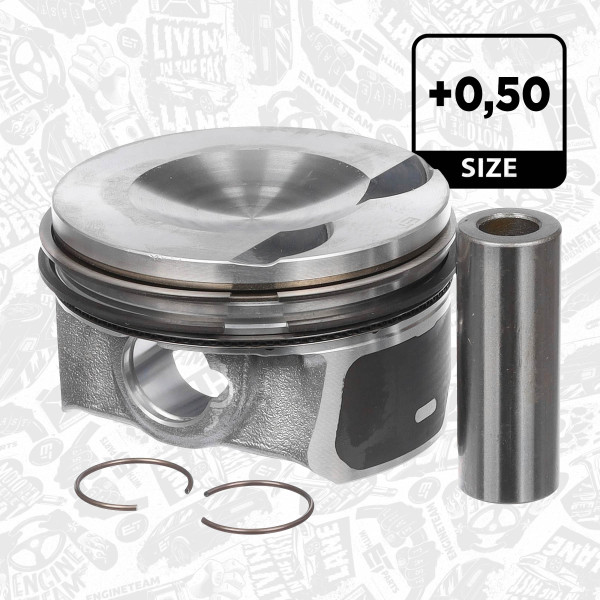

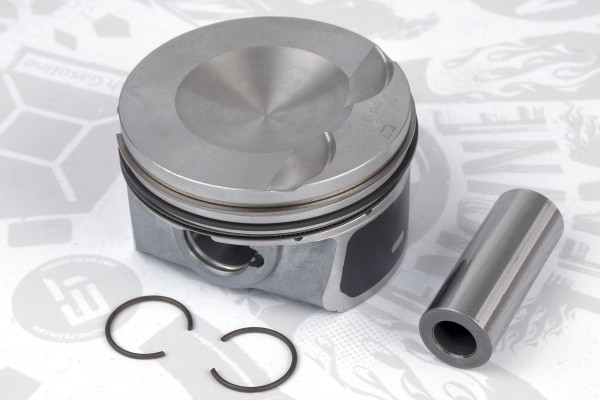

  • Oversize: PM006325 (+0,25 mm) and also PM006350 (+0,5 mm).
  • Alternatives: Complete piston Kolbenschmidt 40247600 in standard size, 40247610 and also the oversized version (+0,25 mm) and 40247620 (+0,50 mm).

PM006400 complete piston ET Engineteam for 2,0 TFSI engines:

  • Bore: 82,51 mm
  • Piston rings: 1,2 mm / 1,2 mm / 2,0 mm.
  • Bolt: 53 mm, bolt diameter 23 mm.
  • For engines: CDNB, CDNC, CESA, CETA, CHJA Euro 5, CPMA, CPMB and others.
  • OE numbers: 06H 107 065 DM, 06H107065DM.
  • Oversize: PM006450 (+0,50mm).
  • Alternatives: Complete piston Kolbenschmidt 41198600 standard size, and also available in oversize 41198620 (+0,50 mm) and complete piston Kolbenschmidt 40759600 standard size, and also available in oversize 40759620 (+0,50 mm).



Practical information for possible swapping of pistons PM0063 / PM0064 for CCZA engines: in the past, pistons with pin diameter 21 mm were installed to the cars. Later on, there has been a manufacture adjustment made. Since then, the pistons are made with stronger pin with 23 mm diameter. If you will order piston from OE, they will supply a piston with 23 mm pin alongside with a note, that if the original piston had 21 mm pin, you will also have to change the connecting rod. This step is very expensive, and that is why the mechanics prefer to use version of a piston with the 21 mm pin (if the original piston is with 21 mm pin as well).



PM006600 complete piston ET Engineteam for 1,2 TSI engines:

  • Bore: 71 mm
  • Piston rings: 1,2 mm / 1,2 mm / 2,0 mm.
  • Bolt: 42 mm x 19 mm.
  • For engines: CBZA, CBZB, CBZC.
  • OE numbers: 03F107065A, 03F107065D, 03F107065F, 03F107065G.

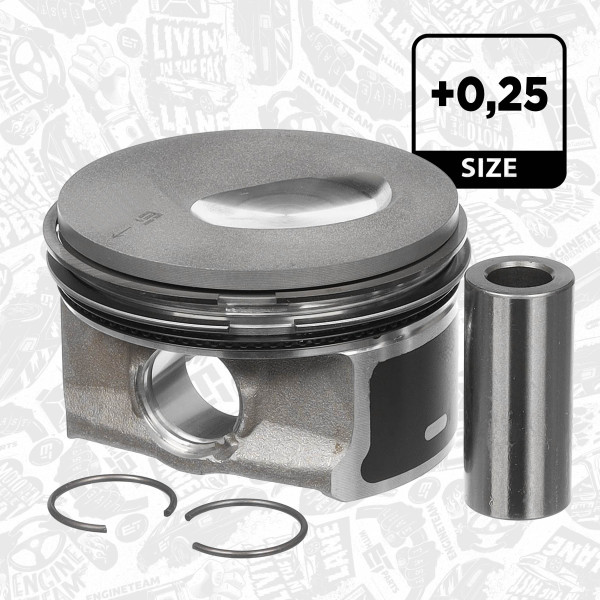

  • Oversize: PM006625 (+0,25 mm), PM006650 (+0,50 mm)

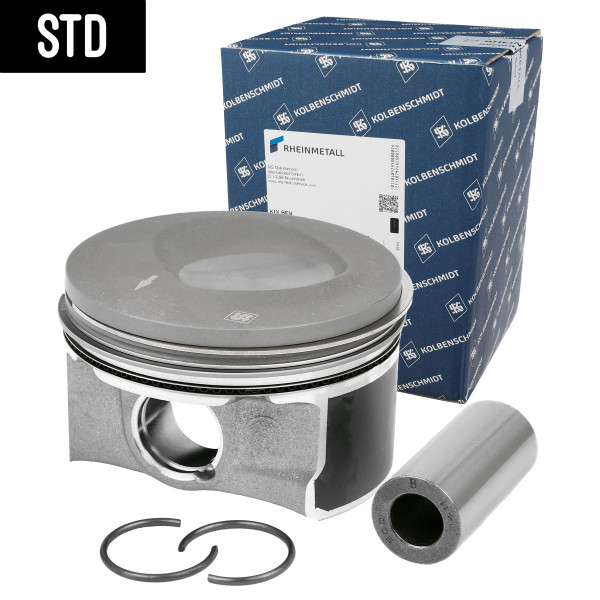

  • Alternatives: Complete piston Kolbenschmidt 41257600 – standard size; oversized versions: 41257610 (+ 0,25 mm) and 41257620 (+0,50 mm).

Selection of items

General information

Code:PM004800
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+

Criteria


Cylinder Bore [mm]: 76,51 mm
Standard Size [STD]
Compression Height [mm]: 29,2 mm
Recess Depth 1 [mm]: 4,6 mm
Bolt Ø [mm]: 19 mm
Bolt length [mm]: 52 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$139.48

($139.48 excl. VAT 0%)

Your price: (-40%)

$83.69

($83.69 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+
PM004800, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+, 03C107065AP

General information

Code:PM004825
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+

Criteria


Cylinder Bore [mm]: 76,76 mm
Compression Height [mm]: 29,2 mm
Recess Depth 1 [mm]: 4,6 mm
Bolt Ø [mm]: 19 mm
Bolt length [mm]: 52 mm
Oversize [mm]: 0,25 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$139.48

($139.48 excl. VAT 0%)

Your price: (-40%)

$83.69

($83.69 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+
PM004825, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda VW Audi Seat 1,4TSI/TFSI CAXA CAXC 2007+

General information

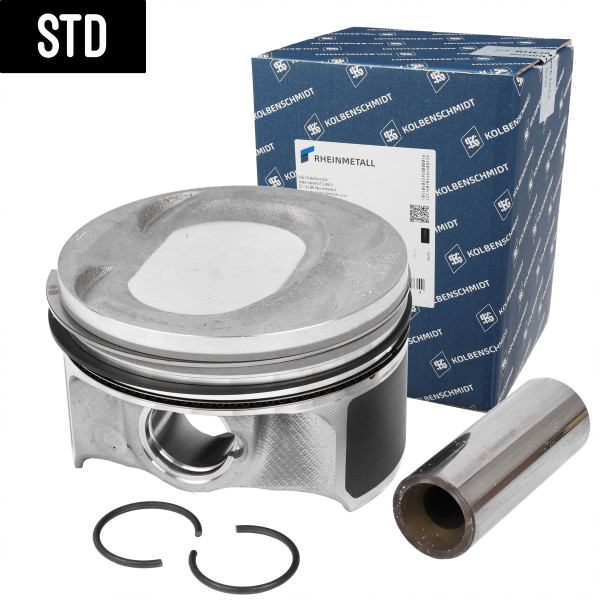

Code:40477600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 52 mm
Component Number: 60892
Quantity: 3
Component Number: 61134
Component Number: 61161
Production Number: 076182
Bore Ø [mm]: 76,51 mm
Compression Height [mm]: 29,2 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: 3 pcs
We recommend!

ŠKODA-VW
40477600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 028PI00118000, 03C107065AP, 076182, 87-429900-00, 03C107065AP001, 03C107065AP003

General information

Code:40477610
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 52 mm
Component Number: 63592
Quantity: 3
Component Number: 63594
Component Number: 63596
Production Number: 076182
Bore Ø [mm]: 76,76 mm
Compression Height [mm]: 29,2 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: 8 pcs

ŠKODA-VW
40477610, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 028PI00118001, 076182

General information

Code:40477620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 52 mm
Component Number: 63593
Quantity: 3
Component Number: 63595
Component Number: 63597
Production Number: 076182
Bore Ø [mm]: 77,01 mm
Compression Height [mm]: 29,2 mm

Price

Netto price:

$125.00

($125.00 excl. VAT 0%)

Your price: (-21%)

$98.75

($98.75 excl. VAT 0%)

Stock: 3 pcs

ŠKODA-VW
40477620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 076182

General information

Code:PM004900
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+

Criteria


Cylinder Bore [mm]: 76,5 mm
Standard Size [STD]
Compression Height [mm]: 29 mm
Bolt Ø [mm]: 19 mm
Bolt length [mm]: 54 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$139.48

($139.48 excl. VAT 0%)

Your price: (-40%)

$83.69

($83.69 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
PM004900, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+, 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C107065AH, 03C107065BL, 03C107065CE, 03C107065CF

General information

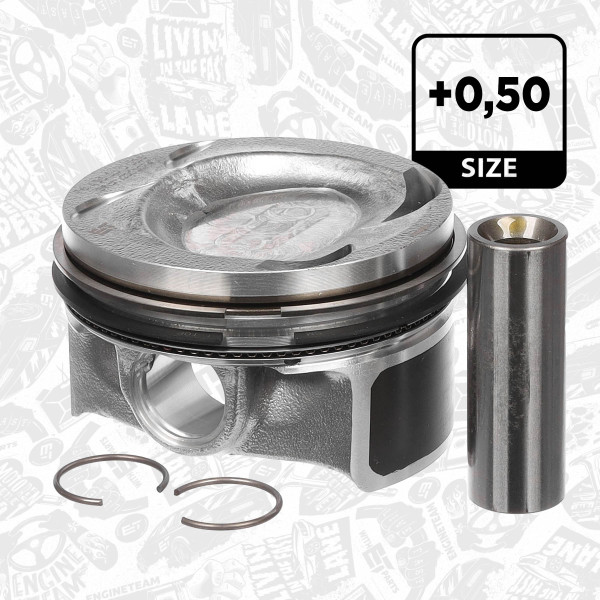

Code:PM004950
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+

Criteria


Cylinder Bore [mm]: 77 mm
Compression Height [mm]: 29 mm
Bolt Ø [mm]: 19 mm
Bolt length [mm]: 54 mm
Oversize [mm]: 0,50 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$139.48

($139.48 excl. VAT 0%)

Your price: (-40%)

$83.69

($83.69 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
PM004950, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+

General information

Code:40846600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TFSI 16V 2010+

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 54 mm
Production Number: 076212
Bore Ø [mm]: 76,51 mm
Compression Height [mm]: 28,97 mm
Length [mm]: 49,97 mm
Piston protrusion [mm]: 2 mm
Recess Depth 1 [mm]: 4,57 mm
Valve pocket depth 1 [mm]: 4 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda VW Audi Seat 1,4TFSI 16V 2010+
40846600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Skoda VW Audi Seat 1,4TFSI 16V 2010+, 028PI00117000, 03C107065AH, 87-433900-10, 03C107065AQ, 76L92, 03C107065AS, 03C107065BF, 03C107065BL, 03C107065CE, 03C107065CF, 03C107065CK

General information

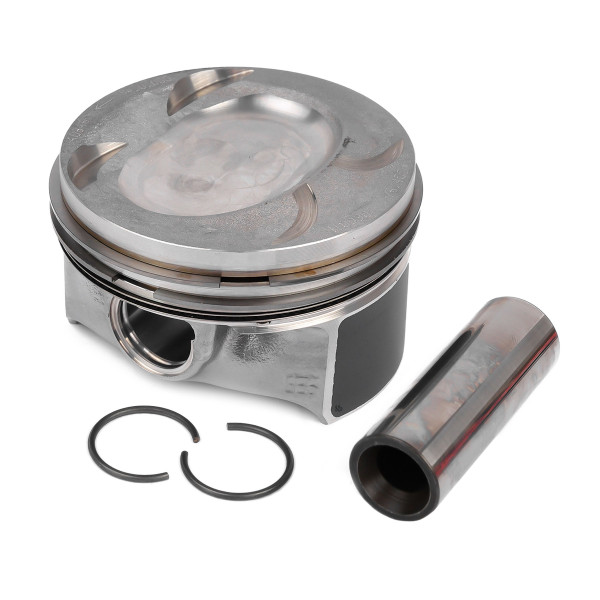

Code:40846620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Skoda VW Audi Seat 1,4TFSI 16V 2010+

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 54 mm
Component Number: 66038
Quantity: 3
Component Number: 66039
Component Number: 66040
Production Number: 076212
Bore Ø [mm]: 77,01 mm
Compression Height [mm]: 28,97 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: 6 pcs
We recommend!

Skoda VW Audi Seat 1,4TFSI 16V 2010+
40846620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Skoda VW Audi Seat 1,4TFSI 16V 2010+, 76212

General information

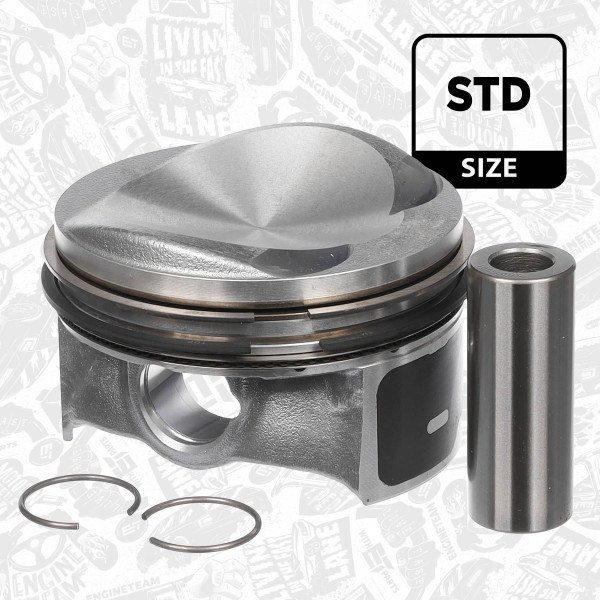

Code:PM006000
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb, VW Tiguan, Audi Seat 1,8TSi BYT BZB CEAA 2006+

Criteria


Cylinder Bore [mm]: 82,51 mm
Standard Size [STD]
Compression Height [mm]: 29,8 mm
Length [mm]: 55,98 mm
Bolt length [mm]: 53 mm
Bolt Ø [mm]: 21 mm
Recess Depth 1 [mm]: 4,75 mm
Recess Diameter [mm]: 67 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$152.38

($152.38 excl. VAT 0%)

Your price: (-40%)

$91.43

($91.43 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Superb, VW Tiguan, Audi Seat 1,8TSi BYT BZB CEAA 2006+
PM006000, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb, VW Tiguan, Audi Seat 1,8TSi BYT BZB CEAA 2006+, 06H107065BK, 06H107099AE, 06H107065T, 06J107065AG

General information

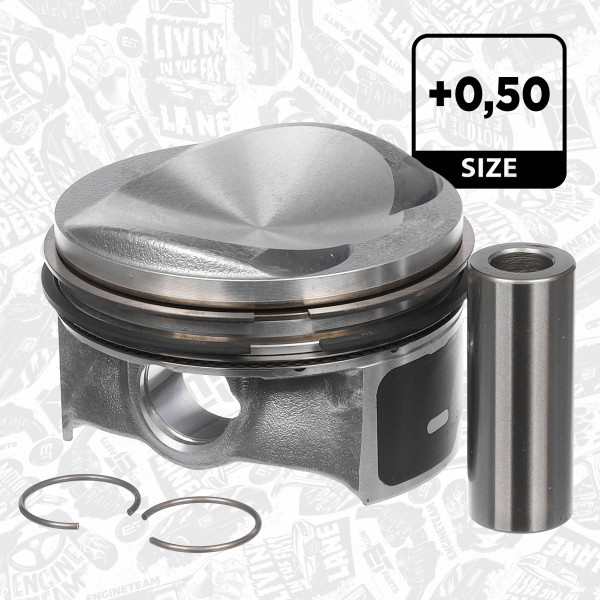

Code:PM006050
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA

Criteria


Cylinder Bore [mm]: 83,01 mm
Compression Height [mm]: 29,8 mm
Length [mm]: 55,98 mm
Piston protrusion [mm]: 4,75 mm
Bolt length [mm]: 53 mm
Bolt Ø [mm]: 21 mm
Recess Depth 1 [mm]: 6 mm
Recess Diameter [mm]: 67 mm
Oversize [mm]: 0,50 mm

Price

Netto price:

$152.38

($152.38 excl. VAT 0%)

Your price: (-40%)

$91.43

($91.43 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA
PM006050, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA

General information

Code:40251600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Skoda Seat VW Audi 1,8TFSI 16V 2007+

Criteria


Bolt Ø [mm]: 21 mm
Bolt length [mm]: 53 mm
Component Number: 63713
Quantity: 3
Component Number: 63716
Component Number: 63719
Production Number: 082236
Bore Ø [mm]: 82,51 mm
Compression Height [mm]: 29,8 mm

Price

Netto price:

$150.00

($150.00 excl. VAT 0%)

Your price: (-21%)

$118.50

($118.50 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Seat VW Audi 1,8TFSI 16V 2007+
40251600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Skoda Seat VW Audi 1,8TFSI 16V 2007+, 028PI00128000, 06H107065F, 06H107099AE, 082236, 06H107065BK, 06H107065T, 06J107065AG

General information

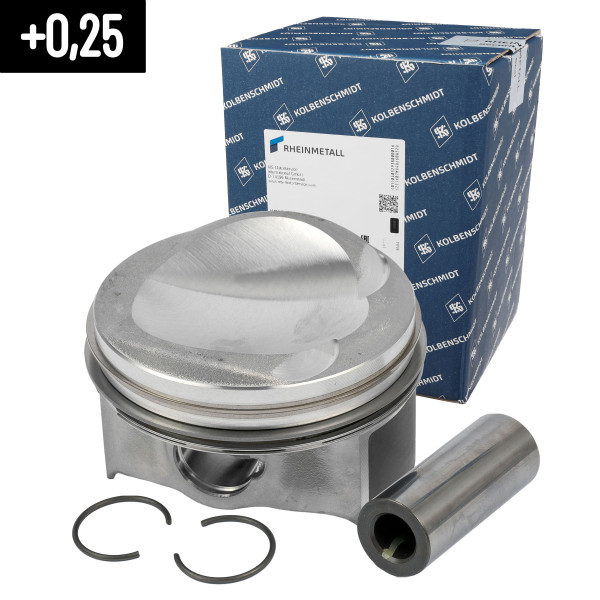

Code:40251610
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Skoda Seat VW Audi 1,8TFSI 16V 2007+

Criteria


Bolt Ø [mm]: 21 mm
Bolt length [mm]: 53 mm
Component Number: 63714
Quantity: 3
Component Number: 63717
Component Number: 63720
Production Number: 082236
Bore Ø [mm]: 82,76 mm
Compression Height [mm]: 29,8 mm

Price

Netto price:

$150.00

($150.00 excl. VAT 0%)

Your price: (-21%)

$118.50

($118.50 excl. VAT 0%)

Stock: 4 pcs
We recommend!

Skoda Seat VW Audi 1,8TFSI 16V 2007+
40251610, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Skoda Seat VW Audi 1,8TFSI 16V 2007+, 028PI00128001, 082236

General information

Code:PM006100
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+

Criteria


Cylinder Bore [mm]: 82,51 mm
Standard Size [STD]
Compression Height [mm]: 29,8 mm
Piston protrusion [mm]: 5,68 mm
Bolt length [mm]: 51 mm
Bolt Ø [mm]: 23 mm
Recess Depth 1 [mm]: 4,75 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$171.43

($171.43 excl. VAT 0%)

Your price: (-40%)

$102.86

($102.86 excl. VAT 0%)

Stock: 0 pcs

Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+
PM006100, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+, 06H107065BF, 06H107065BS, 06H107065CP, 06H107065DF, 06H107065DL

General information

Code:PM006150
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+

Criteria


Cylinder Bore [mm]: 83,01 mm
Compression Height [mm]: 29,8 mm
Piston protrusion [mm]: 5,68 mm
Bolt length [mm]: 51 mm
Bolt Ø [mm]: 23 mm
Recess Depth 1 [mm]: 4,75 mm
Oversize [mm]: 0,50 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$171.43

($171.43 excl. VAT 0%)

Your price: (-40%)

$102.86

($102.86 excl. VAT 0%)

Stock: 0 pcs

Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+
PM006150, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+

General information

Code:40761600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+

Criteria


Bolt Ø [mm]: 23 mm
Bolt length [mm]: 51 mm
Component Number: 66002
Quantity: 3
Component Number: 66003
Component Number: 66004
Production Number: 082277
Bore Ø [mm]: 82,51 mm
Compression Height [mm]: 29,8 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: 0 pcs
External stock: Check

Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+
40761600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+, 06H107065BF, 06H107065BS, 06H107065CP, 06H107065DF, 082277

General information

Code:40761620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+

Criteria


Bolt Ø [mm]: 23 mm
Bolt length [mm]: 51 mm
Component Number: 66009
Quantity: 3
Component Number: 66010
Component Number: 66011
Production Number: 082277
Bore Ø [mm]: 83,01 mm
Compression Height [mm]: 29,8 mm

Price

Netto price:

$147.86

($147.86 excl. VAT 0%)

Your price: (-21%)

$116.81

($116.81 excl. VAT 0%)

Stock: 2 pcs

Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+
40761620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Audi Seat Skoda VW 1,8TSi TFSi 16V CDAA CDAB CDHA CDHB 2008+, 06H107065BF, 06H107065BS, 06H107065CP, 06H107065DF, 082277

General information

Code:PM006300
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+

Criteria


Cylinder Bore [mm]: 82,51 mm
Standard Size [STD]
Compression Height [mm]: 29,6 mm
Bolt length [mm]: 56 mm
Bolt Ø [mm]: 21 mm
Recess Depth 1 [mm]: 6,2 mm
Recess Diameter [mm]: 50 mm
Valve pocket depth 1 [mm]: 3 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$142.38

($142.38 excl. VAT 0%)

Your price: (-40%)

$85.43

($85.43 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+
PM006300, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+, 06H107065AB, 06H107099AM, 06H107065AM, 06H107065BE, 06J107065AH

General information

Code:PM006325
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+

Criteria


Cylinder Bore [mm]: 82,76 mm
Compression Height [mm]: 29,6 mm
Bolt length [mm]: 56 mm
Bolt Ø [mm]: 21 mm
Recess Depth 1 [mm]: 6,2 mm
Recess Diameter [mm]: 50 mm
Valve pocket depth 1 [mm]: 3 mm
Oversize [mm]: 0,25 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$142.38

($142.38 excl. VAT 0%)

Your price: (-40%)

$85.43

($85.43 excl. VAT 0%)

Stock: 0 pcs

Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+
PM006325, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+

General information

Code:PM006350
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+

Criteria


Cylinder Bore [mm]: 83,01 mm
Compression Height [mm]: 29,6 mm
Bolt length [mm]: 56 mm
Bolt Ø [mm]: 21 mm
Recess Depth 1 [mm]: 6,2 mm
Recess Diameter [mm]: 50 mm
Valve pocket depth 1 [mm]: 3 mm
Oversize [mm]: 0,50 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$142.38

($142.38 excl. VAT 0%)

Your price: (-40%)

$85.43

($85.43 excl. VAT 0%)

Stock: 23 pcs
We recommend!

Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+
PM006350, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+

General information

Code:40247600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 21 mm
Bolt length [mm]: 56 mm
Component Number: 63713
Quantity: 3
Component Number: 63716
Component Number: 63719
Production Number: 082243
Bore Ø [mm]: 82,51 mm
Compression Height [mm]: 29,6 mm

Price

Netto price:

$154.76

($154.76 excl. VAT 0%)

Your price: (-21%)

$122.26

($122.26 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

ŠKODA-VW
40247600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 028PI00119000, 06H107065AA, 06H107099AM, 082243, 06H107065AB, 06H107065AM, 06H107065BE, 06J107065AH

General information

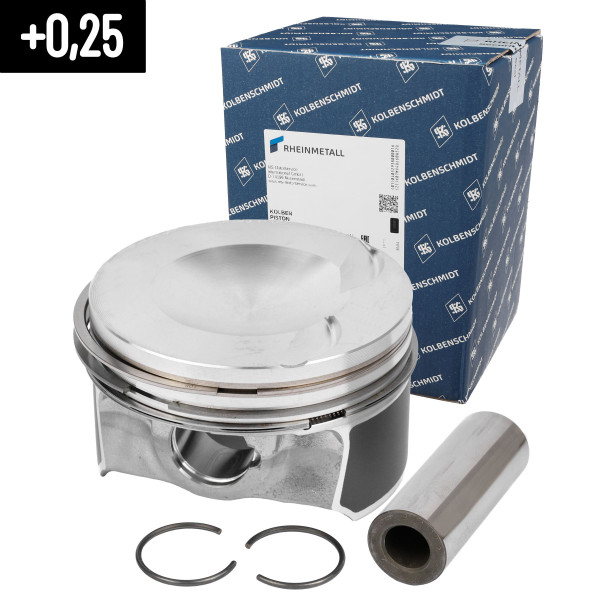

Code:40247610
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 21 mm
Bolt length [mm]: 56 mm
Component Number: 63714
Quantity: 3
Component Number: 63717
Component Number: 63720
Production Number: 082243
Bore Ø [mm]: 82,76 mm
Compression Height [mm]: 29,6 mm

Price

Netto price:

$141.10

($141.10 excl. VAT 0%)

Your price: (-21%)

$111.47

($111.47 excl. VAT 0%)

Stock: 2 pcs
We recommend!

ŠKODA-VW
40247610, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 028PI00119001

General information

Code:40247620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 21 mm
Bolt length [mm]: 56 mm
Component Number: 63715
Quantity: 3
Component Number: 63718
Component Number: 63721
Production Number: 082243
Bore Ø [mm]: 83,01 mm
Compression Height [mm]: 29,6 mm

Price

Netto price:

$141.10

($141.10 excl. VAT 0%)

Your price: (-21%)

$111.47

($111.47 excl. VAT 0%)

Stock: 0 pcs
External stock: Check

ŠKODA-VW
40247620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 028PI00119002

General information

Code:PM006400
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+

Criteria


Cylinder Bore [mm]: 82,51 mm
Standard Size [STD]
Compression Height [mm]: 29,6 mm
Bolt length [mm]: 53 mm
Recess Depth 1 [mm]: 6,2 mm
Pin Diameter [mm]: 23 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$183.33

($183.33 excl. VAT 0%)

Your price: (-40%)

$110.00

($110.00 excl. VAT 0%)

Stock: 0 pcs

Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+
PM006400, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+, 06H107065DM

General information

Code:PM006450
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+

Criteria


Cylinder Bore [mm]: 83,01 mm
Compression Height [mm]: 29,6 mm
Bolt length [mm]: 53 mm
Recess Depth 1 [mm]: 6,2 mm
Pin Diameter [mm]: 23 mm
Oversize [mm]: 0,50 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$183.33

($183.33 excl. VAT 0%)

Your price: (-40%)

$110.00

($110.00 excl. VAT 0%)

Stock: 3 pcs

Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+
PM006450, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Superb Octavia, VW Golf Tiguan Transporter 2,0TSI CCZA 2009+

General information

Code:41198600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+

Criteria


Bolt Ø [mm]: 23 mm
Bolt length [mm]: 53 mm
Component Number: 66002
Quantity: 3
Component Number: 66003
Component Number: 66318
Production Number: 082316
Bore Ø [mm]: 82,51 mm
Compression Height [mm]: 29,6 mm

Price

Netto price:

$169.38

($169.38 excl. VAT 0%)

Your price: (-21%)

$133.81

($133.81 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+
41198600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+, 06H107065DM, 06H10706DN, 82316, 06H107065DP, 06H107065BD, 06H107065BH, 06H107065CM, 06H107065DD, 40759600

General information

Code:41198620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+

Criteria


Bolt Ø [mm]: 23 mm
Bolt length [mm]: 53 mm
Component Number: 66009
Quantity: 3
Component Number: 66010
Component Number: 66344
Production Number: 082316
Bore Ø [mm]: 83,01 mm
Compression Height [mm]: 29,6 mm

Price

Netto price:

$169.38

($169.38 excl. VAT 0%)

Your price: (-21%)

$133.81

($133.81 excl. VAT 0%)

Stock: 4 pcs
We recommend!

Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+
41198620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, Audi A3 A4 A5 Q5, Seat Leon, VW Passat Jetta CBFA CJKA 2009+

General information

Code:PM006600
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+

Criteria


Cylinder Bore [mm]: 71 mm
Standard Size [STD]
Bolt length [mm]: 42 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$114.29

($114.29 excl. VAT 0%)

Your price: (-40%)

$68.57

($68.57 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+
PM006600, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+, 03F107065F, 03F107065G, 03F107065A, 03F107065D

General information

Code:PM006625
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+

Criteria


Cylinder Bore [mm]: 71,25 mm
Bolt length [mm]: 42 mm
Pin Diameter [mm]: 19 mm
Oversize [mm]: 0,25 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$114.29

($114.29 excl. VAT 0%)

Your price: (-40%)

$68.57

($68.57 excl. VAT 0%)

Stock: > 25 pcs
We recommend!

Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+
PM006625, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+

General information

Code:PM006650
Brand: ET ENGINETEAM
Name:Piston
Vehicle:Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+

Criteria


Cylinder Bore [mm]: 71,50 mm
Bolt length [mm]: 42 mm
Pin Diameter [mm]: 19 mm
Oversize [mm]: 0,50 mm
Supplementary Article/Supplementary Info: with piston rings

Price

Netto price:

$114.29

($114.29 excl. VAT 0%)

Your price: (-40%)

$68.57

($68.57 excl. VAT 0%)

Stock: 16 pcs
We recommend!

Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+
PM006650, Piston, Complete piston with rings and pin, ET ENGINETEAM, Skoda Rapid, VW Caddy 1,2TSI CBZA CBZB CBZC 2010+

General information

Code:41257600
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 42 mm
Component Number: 66333
Quantity: 3
Component Number: 66334
Component Number: 66483
Production Number: 071076
Bore Ø [mm]: 71 mm
Compression Height [mm]: 28,94 mm

Price

Netto price:

$107.14

($107.14 excl. VAT 0%)

Your price: (-21%)

$84.64

($84.64 excl. VAT 0%)

Stock: 19 pcs
We recommend!

ŠKODA-VW
41257600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 03F107065F, 03F107065G, 03F107065A, 03F107065D

General information

Code:41257610
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 42 mm
Component Number: 66336
Quantity: 3
Component Number: 66337
Component Number: 66484
Production Number: 071076
Bore Ø [mm]: 71,25 mm
Compression Height [mm]: 28,94 mm

Price

Netto price:

$107.14

($107.14 excl. VAT 0%)

Your price: (-21%)

$84.64

($84.64 excl. VAT 0%)

Stock: > 25 pcs

ŠKODA-VW
41257610, Piston, Complete piston with rings and pin, KOLBENSCHMIDT

General information

Code:41257620
Brand: KOLBENSCHMIDT
Name:Piston
Vehicle:ŠKODA-VW

Criteria


Bolt Ø [mm]: 19 mm
Bolt length [mm]: 42 mm
Component Number: 66339
Quantity: 3
Component Number: 66340
Component Number: 66485
Bore Ø [mm]: 71,5 mm
Compression Height [mm]: 28,94 mm
Length [mm]: 46 mm

Price

Netto price:

$107.14

($107.14 excl. VAT 0%)

Your price: (-21%)

$84.64

($84.64 excl. VAT 0%)

Stock: > 25 pcs

ŠKODA-VW
41257620, Piston, Complete piston with rings and pin, KOLBENSCHMIDT
This web uses cookies. By continuing to browse, we understad that you accept their use.
More information
