Kolbenschmidt supplies their pistons not only to the primary production of passenger cars, vans and trucks, but also for various machines, industrial engines, construction machinery and equipment and marine engines. Do you see huge machines on highway construction sites, the purpose of which is sometimes difficult to guess? They are various asphalters, excavators, loaders, recultivators, diesel engines and other equipment of many brands, such as Manitou, McCormic, Caterpillar, Bobcat, Perkins, Doosan, KHD, etc.
Not every manufacturer of construction machines develops their own engine to power a specific device. They often use engines or components from a different manufacturer. When identifying the engine, it is important to find the engine label and with it we can then find the specific manufacturer of the part among all brands. It is common that one specific piston is used in construction machinery such as Caterpillar, Manitou and Perkins.
How to correctly find the required part for industrial engines? See also this article: ENGINE PARTS FOR AGRICULTURAL AND INDUSTRIAL MACHINES
Kolbenschmidt pistons can also be found in many tractors and marine engines. For your convenience, we have stocked pistons for the most common engines. Below you will find an overview of KS pistons with OE numbers and of engine codes for the most common applications. If you do not find the required piston in our warehouse, do not hesitate to contact us with specific request.
|
KS number |
OE Number |
Engine code |
|
115017621 (STD) |
403D-11, 403D-11G, 403A-11G1, 403F-11G, 403F-11, 404D-15 |
|
|
115017541 (STD) |
403D-15, 403A-15G1, 403A-15G2, 403D-15G, 403F-15G, 403F-15TG, 403F-15 |
|
|
115017491 (STD) |
403D-17, 404D-22, 404A-22G1, 404A-22G1, 404D-22TAG, 404D-22TG |
|
|
115017581 (STD) |
404D-22T, 404D-22TA |
|
|
4115P011 (STD) |
1103C-33, 1104C-44, 1104A-44 |
|
|
4115P015 (STD) |
1103C-33T, 1103D-33, 1103C-33TG2, 1103C-33TG3, 1104C-44T, 1104C-44TA, 1104C-44TA, 1104C-44TG2, 1104C-44TG3, 1104D-44TG1 |
Below you will find catalog brochures for individual manufacturers of machines, equipment and industrial engines.
BOBCAT - engines 1104D-44TA, 1104D-E44TA
DOOSAN – engines DC9, DT12, P222LE, DC 12
MANITOU – engines OM 934.911, OM 934.971, OM 934.978
MCCORMICK – engines 1103C-33, 1103D-33, 1104C-44TA, 1104D-44T, 854E-E34TA
SHIBAURA – N843, N843L, N844L, N844L-T, N844LTA-D
CATERPILLAR – 3013C, 3014, C 1.1, C 2.2 TA, C 3.3, C 4.4 ACERT, C 6.6, XN 1P
PERKINS - 1104C-44G2, 1104D-E44TA, 3.152, 403A-11G1, 404D-22TA, Prima 80 T
Don't forget to sign in for your prices.
General information
| Code: | 41528600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | JCB Perkins 403A-11* 403D-11* 403F-11* 404C-15* 404D-15* |
| Weight : | 0,57 kg |
Criteria
| Cylinder Bore [mm]: | 77 mm |
| Piston Clearance [mm]: | 0,06 mm |
| Compression Height [mm]: | 35,6 mm |
| Length [mm]: | 65,6 mm |
| Valve Pocket Depth 1 [mm]: | 0,8 mm |
| Valve Pocket Depth 2 [mm]: | 0,8 mm |
| Component Number: | 66075 |
| Component Number: | 66076 |
| Component Number: | 66077 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 21 mm |
| Bolt Length [mm]: | 55 mm |
General information

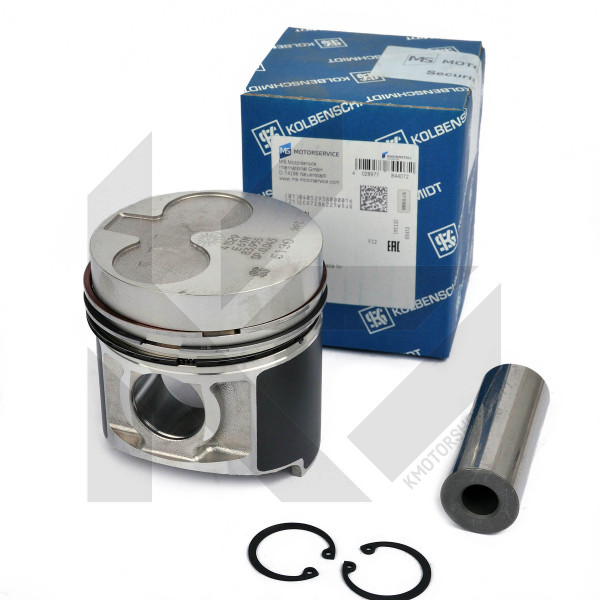

| Code: | 41529600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | PERKINS |
| Weight : | 0,99 kg |
Criteria

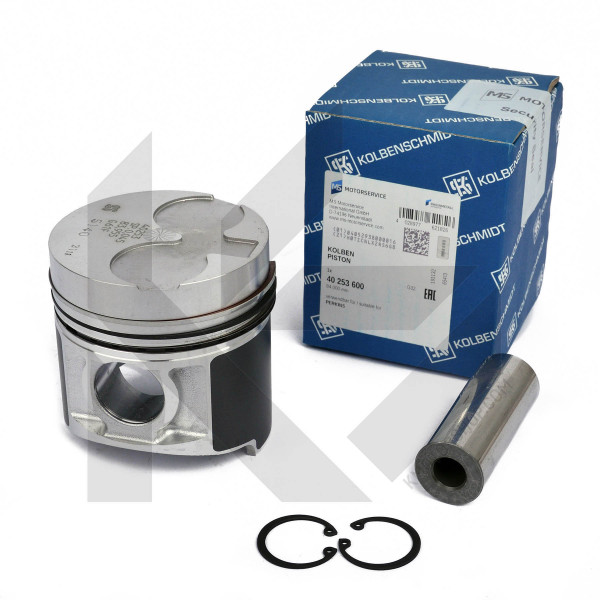

| Cylinder Bore [mm]: | 84 mm |
| Piston Clearance [mm]: | 0,045 mm |
| Compression Height [mm]: | 47,7 mm |
| Length [mm]: | 87,7 mm |
| Valve Pocket Depth 1 [mm]: | 1,4 mm |
| Component Number: | 62959 |
| Component Number: | 66089 |
| Component Number: | 66090 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 28 mm |
| Bolt Length [mm]: | 72 mm |
General information
| Code: | 40253600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Case-IH New Holland Takeuchi Terex JCB Perkins Shibaura N843 N844 403C-15 404C-20 404C-22 403D-15 404D-22 code HP KR GN GS GV HN HP |
| Weight : | 0,95 kg |
Criteria
| Cylinder Bore [mm]: | 84 mm |
| Piston Clearance [mm]: | 0,045 mm |
| Compression Height [mm]: | 47,7 mm |
| Length [mm]: | 87,7 mm |
| Valve Pocket Depth 1 [mm]: | 1,6 mm |
| Component Number: | 62959 |
| Component Number: | 62960 |
| Component Number: | 66090 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 28 mm |
| Bolt Length [mm]: | 72 mm |
General information
| Code: | 40235600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Atlas Copco Landini Massey Ferguson McCormick F.G.Wilson Teksan Genmac Hyster Noble Perkins 1103C* 1104C* |
| Weight : | 1,98 kg |
Criteria
| Production Number: | 105151 |
| Cylinder Bore [mm]: | 105 mm |
| Piston Clearance [mm]: | 0,15 mm |
| Compression Height [mm]: | 70,12 mm |
| Length [mm]: | 108,05 mm |
| Recess Depth 1 [mm]: | 22,44 mm |
| Recess Diameter [mm]: | 51,28 mm |
| Component Number: | 87245 |
| Component Number: | 87869 |
| Component Number: | 88856 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 39,7 mm |
| Bolt Length [mm]: | 70 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
General information

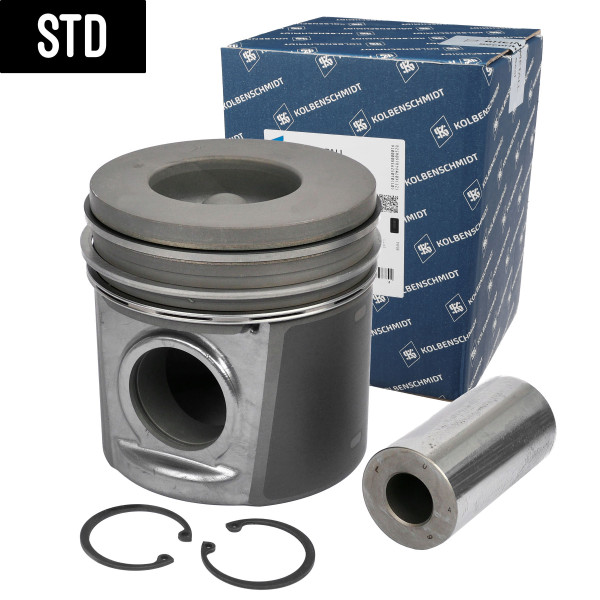

| Code: | 40234600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Caterpillar C3.3T 3054C Landini Massey-Ferguson Olympian Valtra Perkins 1103A-33G 1103A-33TG 1103C-33 1103C-33T 1103C-33TG 1103D-33 1104A-44 1104C-44T 1104C-44TA 1104C-44TG 1104C-E44T 1104C-E44TA code DD DE DG RG RH RJ RK RS RT |
| Weight : | 2,08 kg |
Criteria
| Production Number: | 105151 |
| Cylinder Bore [mm]: | 105 mm |
| Piston Clearance [mm]: | 0,11 mm |
| Compression Height [mm]: | 70,12 mm |
| Length [mm]: | 108,05 mm |
| Recess Depth 1 [mm]: | 22 mm |
| Recess Diameter [mm]: | 55,21 mm |
| Component Number: | 87245 |
| Component Number: | 87870 |
| Component Number: | 88856 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 39,7 mm |
| Bolt Length [mm]: | 78 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
General information

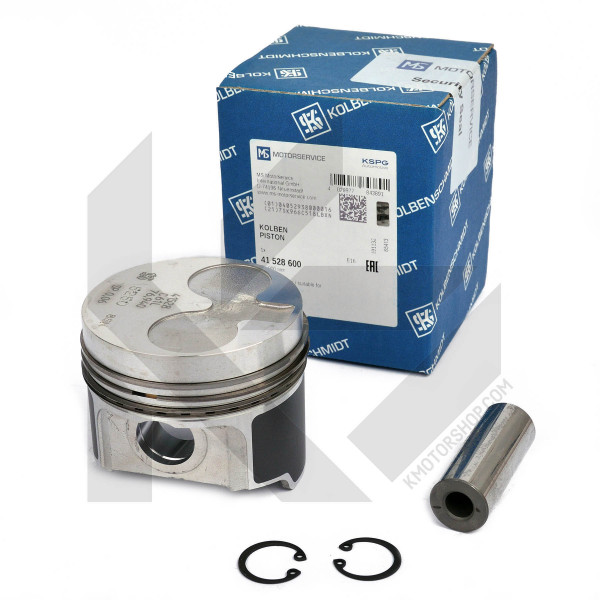

| Code: | 41528620 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | JCB Perkins 403A-11* 403D-11* 403F-11* 404C-15* 404D-15* |
| Weight : | 0,56 kg |
Criteria
| Cylinder Bore [mm]: | 77,5 mm |
| Piston Clearance [mm]: | 0,06 mm |
| Compression Height [mm]: | 35,6 mm |
| Length [mm]: | 65,6 mm |
| Valve Pocket Depth 1 [mm]: | 0,8 mm |
| Valve Pocket Depth 2 [mm]: | 0,8 mm |
| Component Number: | 66078 |
| Component Number: | 66079 |
| Component Number: | 66080 |
| Bolt Head Diameter [mm]: | 21 mm |
| Bolt Length [mm]: | 55 mm |
| Repair stage: | 0,50 |
| Warehouse: | 4 pcs | |
| Supplier: | 18 pcs |
General information
| Code: | 41529620 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | PERKINS |
| Weight : | 1,00 kg |
Criteria
| Cylinder Bore [mm]: | 84,5 mm |
| Piston Clearance [mm]: | 0,045 mm |
| Compression Height [mm]: | 47,7 mm |
| Length [mm]: | 87,7 mm |
| Valve Pocket Depth 1 [mm]: | 1,4 mm |
| Component Number: | 63530 |
| Component Number: | 63532 |
| Component Number: | 63534 |
| Bolt Head Diameter [mm]: | 28 mm |
| Bolt Length [mm]: | 72 mm |
| Repair stage: | 0,50 |
General information
| Code: | 40253620 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Case-IH New Holland Takeuchi Terex JCB Perkins Shibaura N843 N844 403C-15 404C-20 404C-22 403D-15 404D-22 code HP KR GN GS GV HN HP |
| Weight : | 0,97 kg |
Criteria
| Cylinder Bore [mm]: | 84,5 mm |
| Piston Clearance [mm]: | 0,045 mm |
| Compression Height [mm]: | 47,7 mm |
| Length [mm]: | 87,7 mm |
| Valve Pocket Depth 1 [mm]: | 1,6 mm |
| Component Number: | 63530 |
| Component Number: | 63532 |
| Component Number: | 63534 |
| Bolt Head Diameter [mm]: | 28 mm |
| Bolt Length [mm]: | 72 mm |
| Repair stage: | 0,50 |
General information

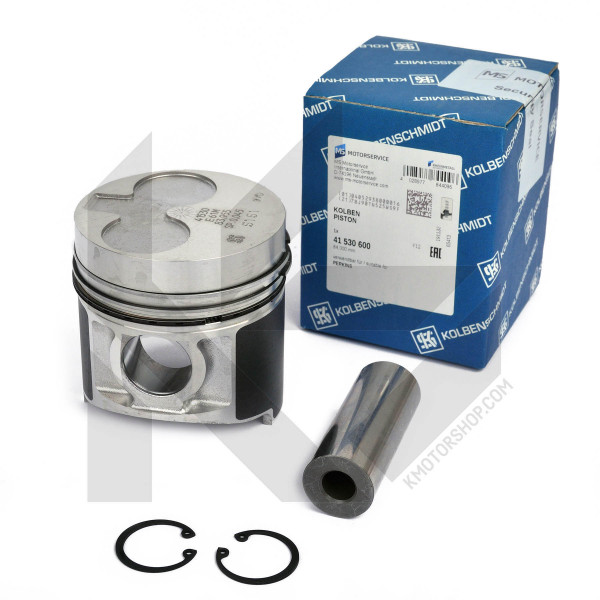

| Code: | 41530600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Caterpillar Perkins Shibaura 3024 3024C C1.5 C2.2T C2.2TA 404D-22T 404D-22TA N844T N844L N844LTA |
| Weight : | 0,98 kg |
Criteria
| Cylinder Bore [mm]: | 84 mm |
| Piston Clearance [mm]: | 0,045 mm |
| Compression Height [mm]: | 47,7 mm |
| Length [mm]: | 87,7 mm |
| Valve Pocket Depth 1 [mm]: | 1,8 mm |
| Component Number: | 66088 |
| Component Number: | 66089 |
| Component Number: | 66090 |
| Standard Size [STD]: | yes |
| Bolt Head Diameter [mm]: | 28 mm |
| Bolt Length [mm]: | 72 mm |
General information
| Code: | 40235610 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |

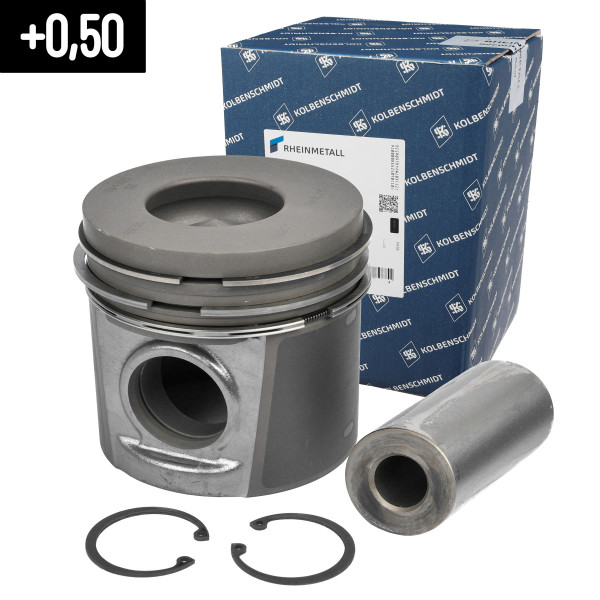

| Car: | Atlas Copco Landini Massey Ferguson McCormick F.G.Wilson Teksan Genmac Hyster Noble Perkins 1103C* 1104C* |
| Weight : | 1,98 kg |
Criteria
| Production Number: | 105151 |
| Cylinder Bore [mm]: | 105,5 mm |
| Piston Clearance [mm]: | 0,15 mm |
| Compression Height [mm]: | 70,12 mm |
| Length [mm]: | 108,05 mm |
| Recess Depth 1 [mm]: | 22,44 mm |
| Recess Diameter [mm]: | 51,28 mm |
| Component Number: | 60721 |
| Component Number: | 60723 |
| Component Number: | 60725 |
| Bolt Head Diameter [mm]: | 39,7 mm |
| Bolt Length [mm]: | 70 mm |
| Repair stage: | 0,50 |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
General information
| Code: | 40234610 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston with rings and pin |
| Car: | Caterpillar C3.3T 3054C Landini Massey-Ferguson Olympian Valtra Perkins 1103A-33G 1103A-33TG 1103C-33 1103C-33T 1103C-33TG 1103D-33 1104A-44 1104C-44T 1104C-44TA 1104C-44TG 1104C-E44T 1104C-E44TA code DD DE DG RG RH RJ RK RS RT |
| Weight : | 2,12 kg |
Criteria
| Production Number: | 105151 |
| Cylinder Bore [mm]: | 105,5 mm |
| Piston Clearance [mm]: | 0,11 mm |
| Compression Height [mm]: | 70,12 mm |
| Length [mm]: | 108,05 mm |
| Recess Depth 1 [mm]: | 22 mm |
| Recess Diameter [mm]: | 55,21 mm |
| Component Number: | 60721 |
| Component Number: | 60723 |
| Component Number: | 62733 |
| Bolt Head Diameter [mm]: | 39,7 mm |
| Bolt Length [mm]: | 78 mm |
| Repair stage: | 0,50 |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
